Counter & Timer Accessories

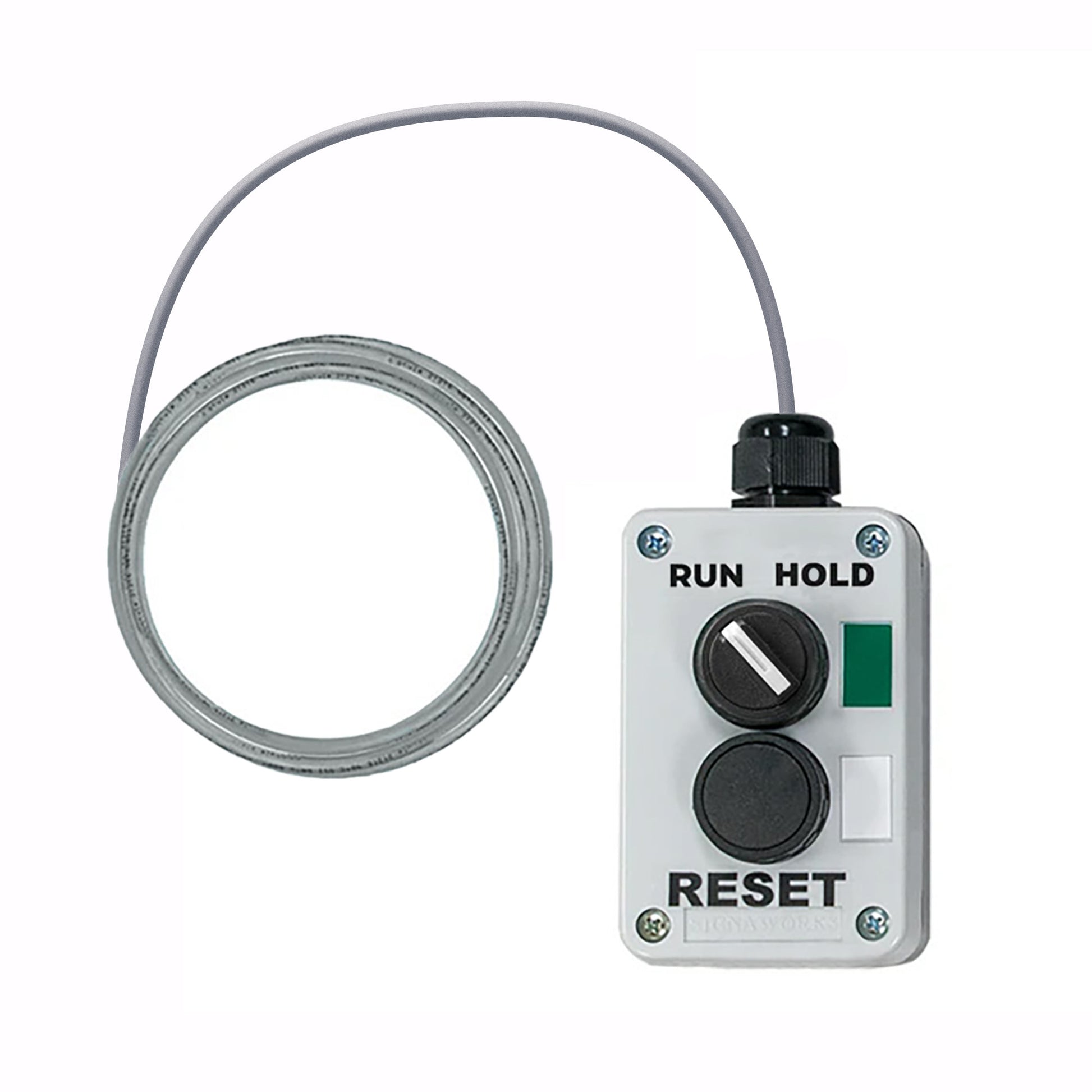

Manual Count

This Run/Hold Reset Kit includes 15 foot cabling with a non-terminated end for use with any unit requiring actuation of inputs to Hold or Reset the display.

Included is one switch and one pushbutton pre-wired with the black wire as common, the green wire as Run/Hold, and the red wire as Reset (3 wires).

For use with the AF-2625 and AF-2645 series products utilizing 120VAC inputs, 120VAC Hot must be connected to the "black" kit wire, 120VAC Neutral must be ran to the appropriate PC board contact (to one side of the Run/Hold input (PCB) and one side of the Reset input (PCB) terminals), and the "red" kit wire must be ran to the other Reset input (PCB) while the "green" kit wire is ran to the Run/Hold input (PCB).

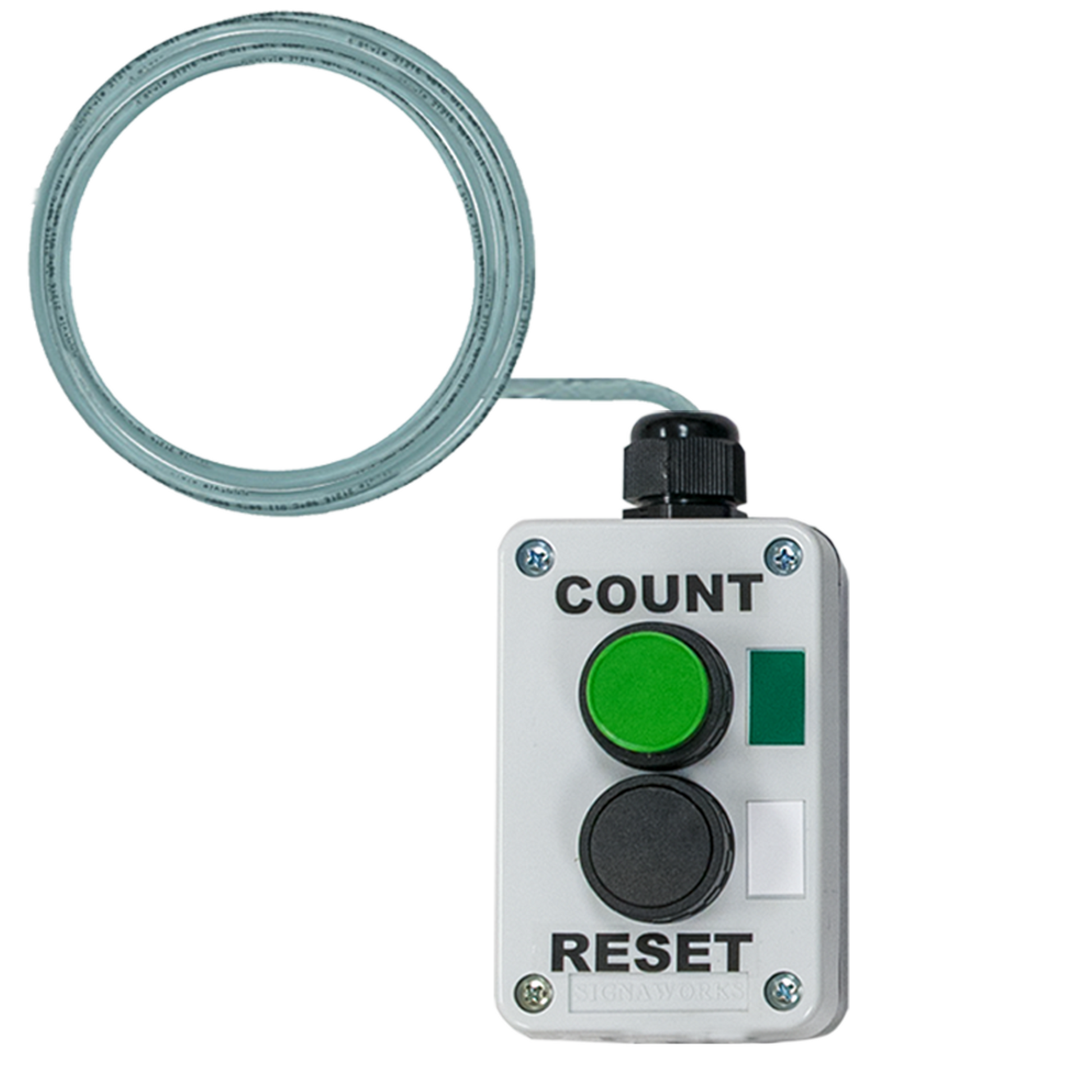

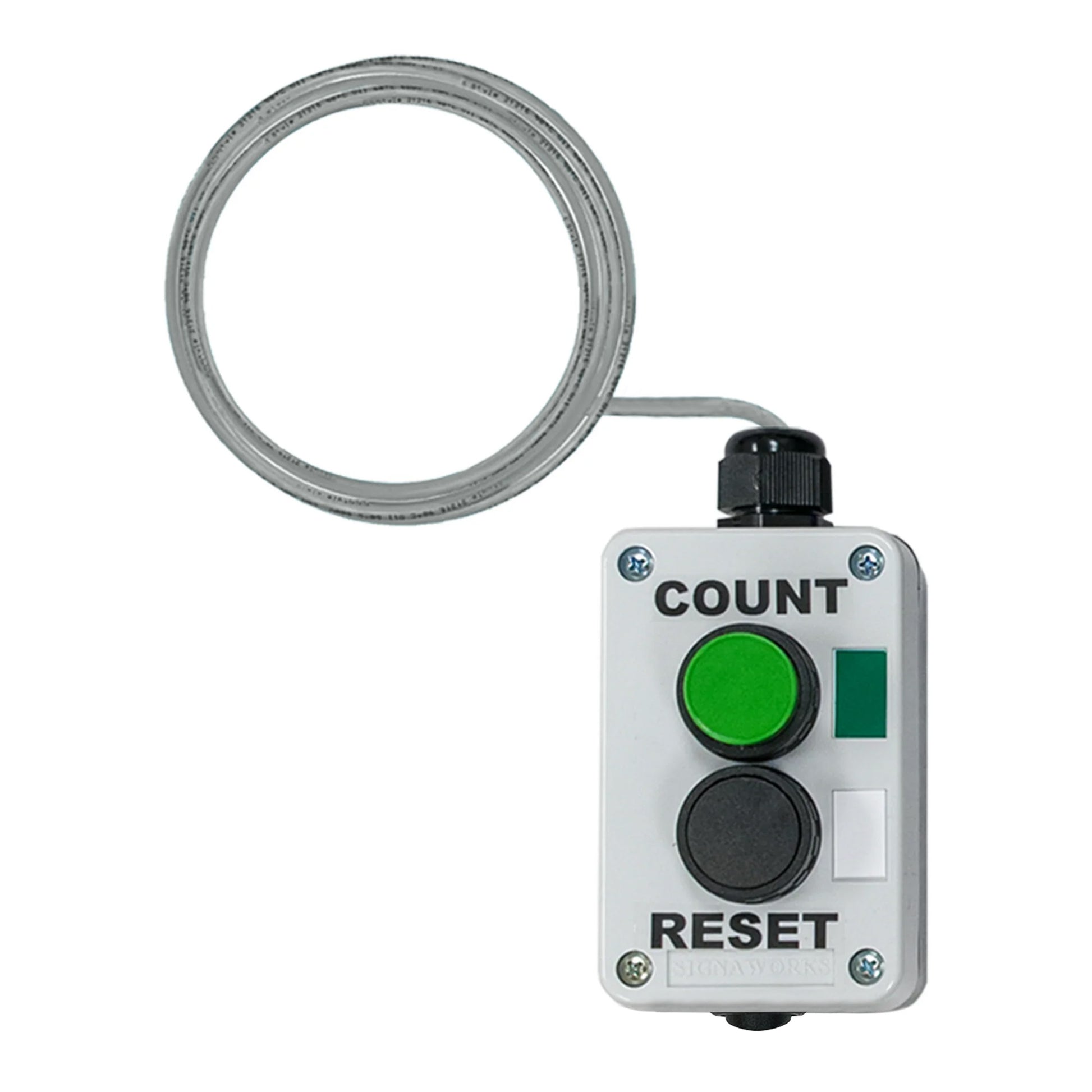

Manual Count. Reset Box for Counter or PPT (Formerly KT-2764-030)

This Push button Kit includes 15 foot cabling with a non-terminated end for use with any unit requiring wired inputs for counting or resetting the display.

Included are 2 push buttons pre-wired with the black wire as switch common, the green wire as Count, and the red wire as Reset (3 wires).

For use with the AF-2625 and AF-2645 series products utilizing 120VAC inputs, 120VAC Hot must be connected to the "black" kit wire, 120VAC Neutral must be ran to the appropriate PC board input contact (each input), and the "red" kit wire must be ran to the Reset input (PCB) while the "green" kit wire is ran to the Count input (PCB).

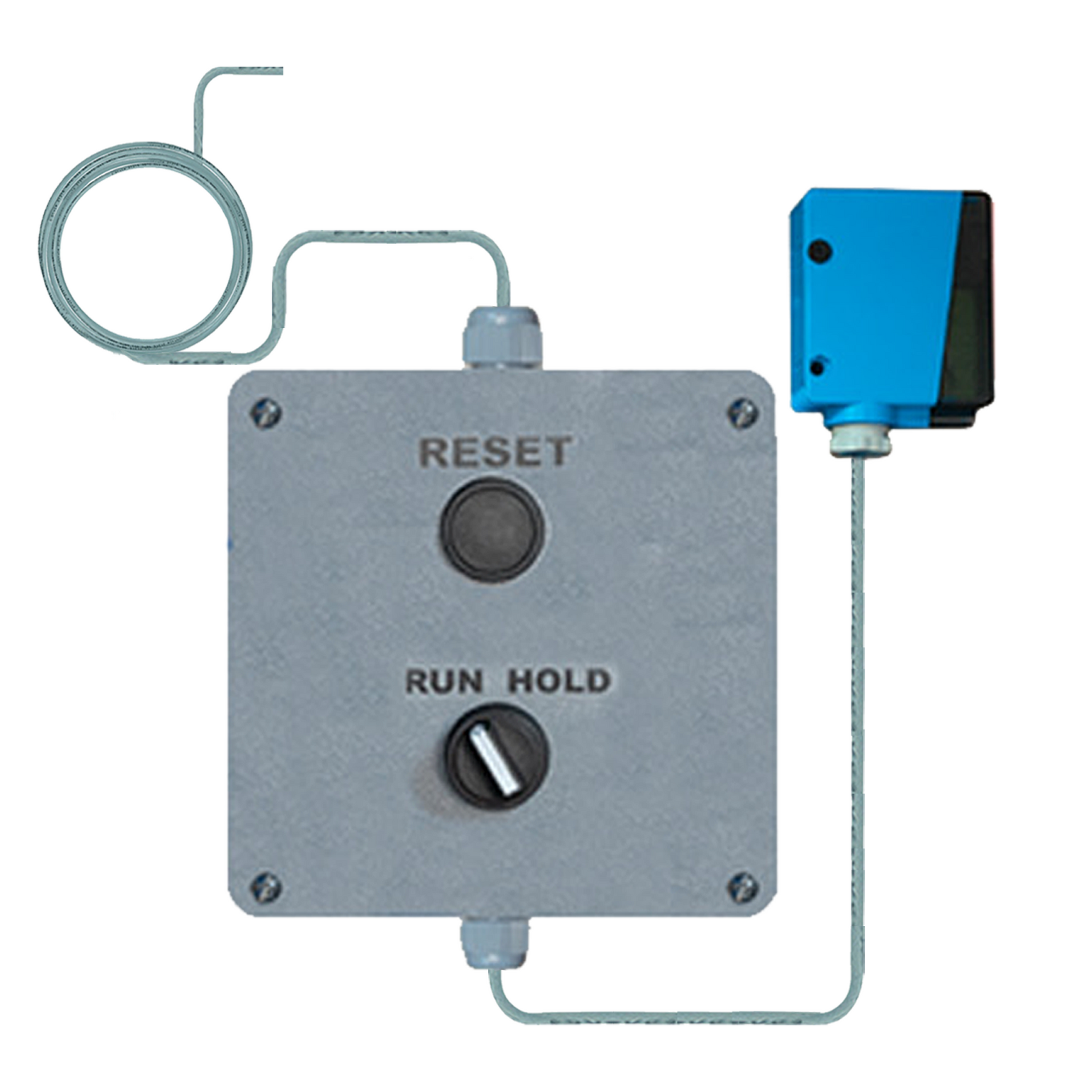

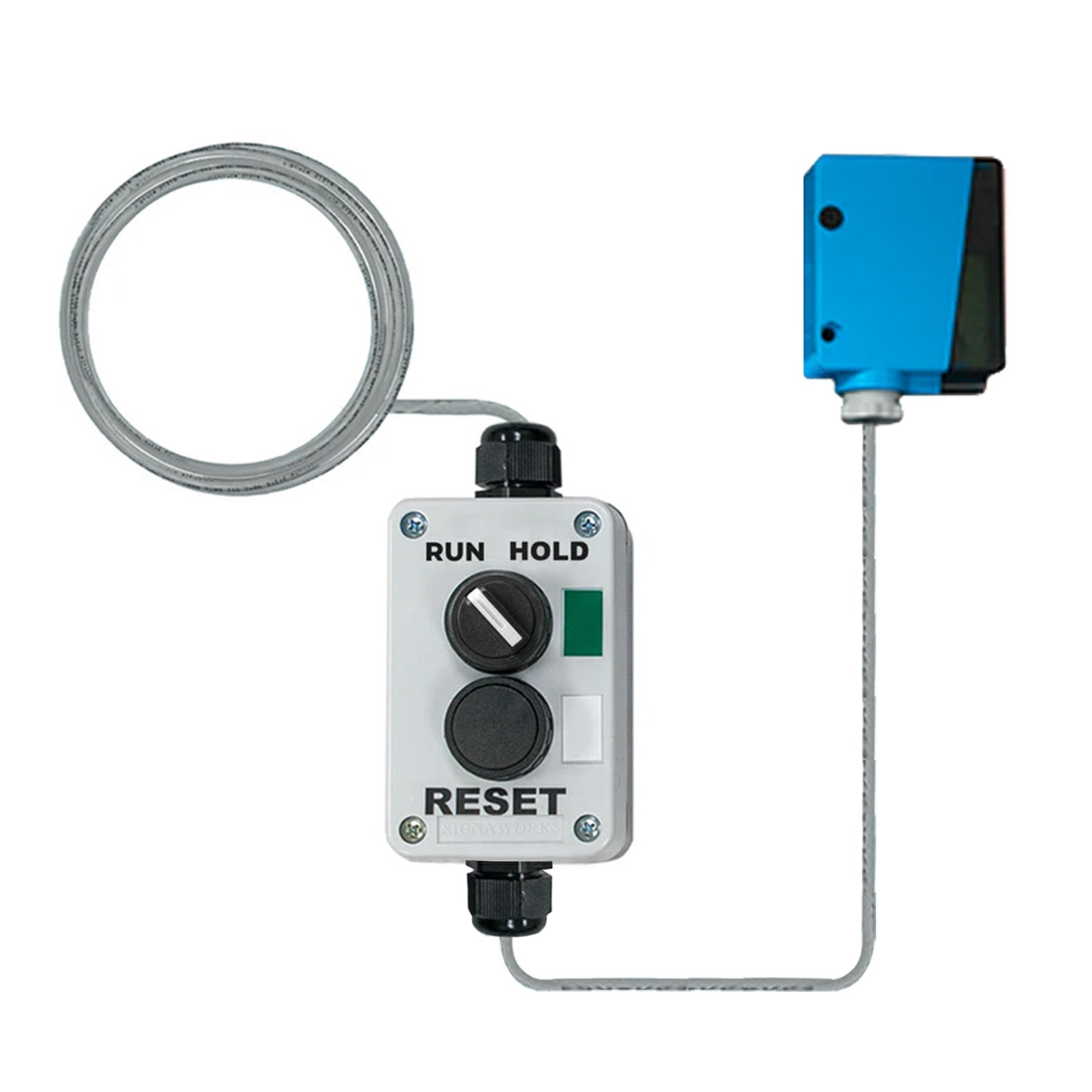

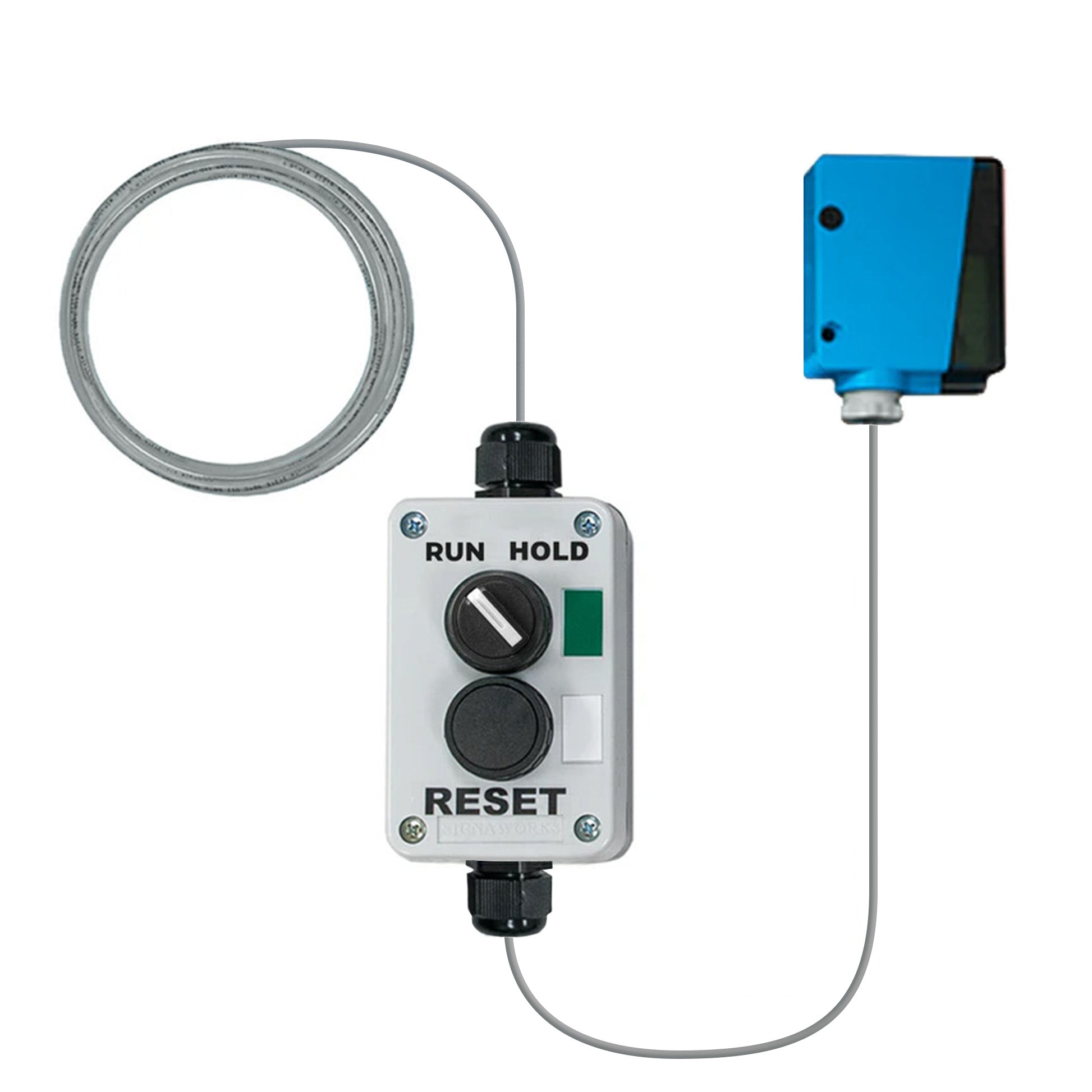

Diffuse Photo. Reset Switch Box for Counter or PPT

This photo-eye kit is configured to plug directly into the unit bottom connector on the AF-272x-xxx Series PPT/PCT/PRM.

Unit comes with 120VAC power cord.
