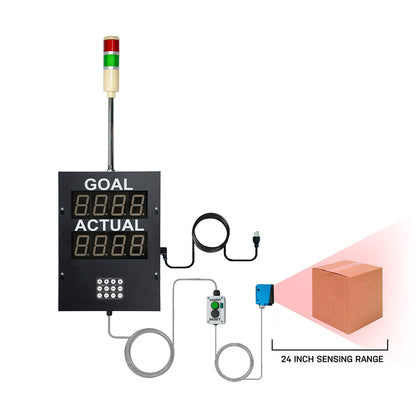

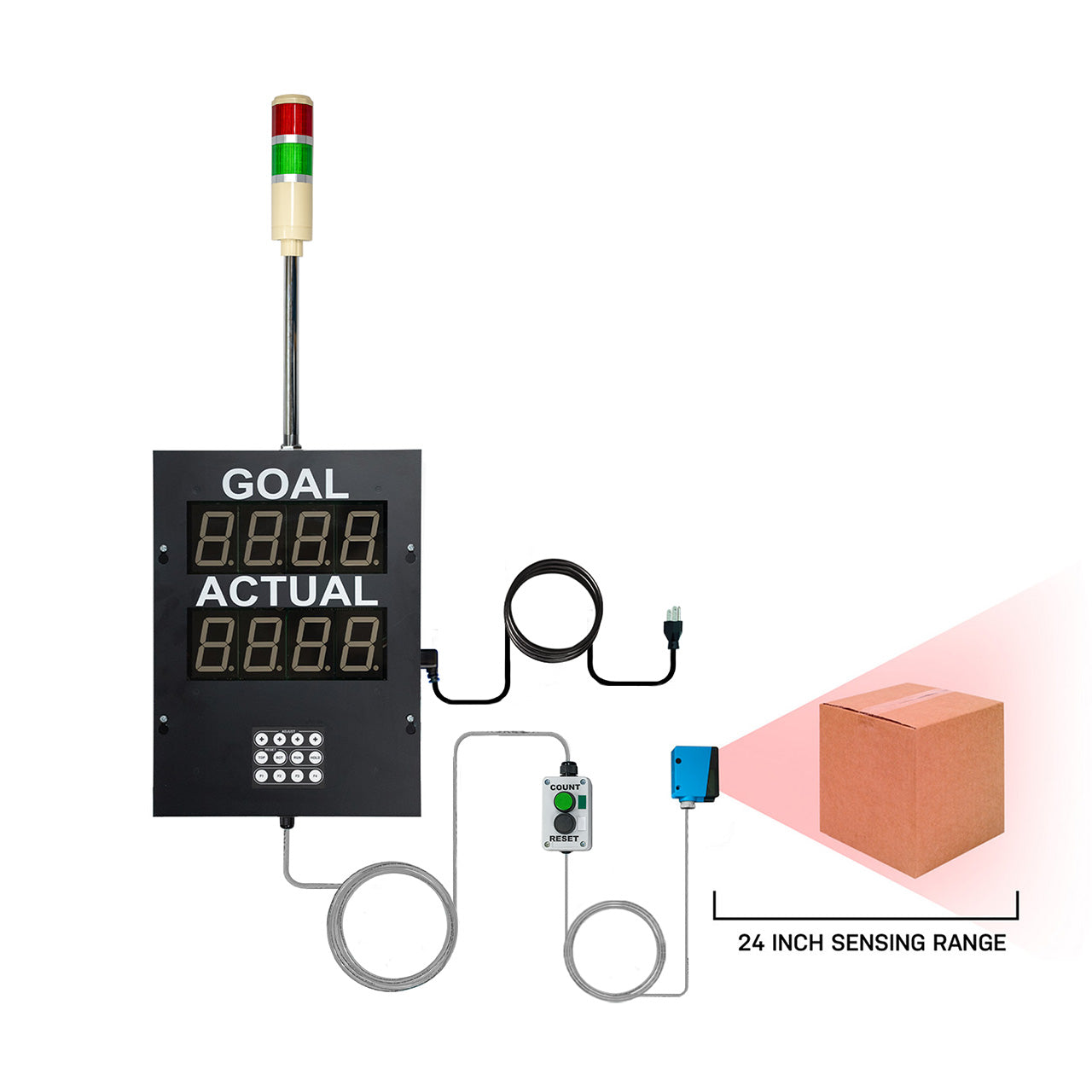

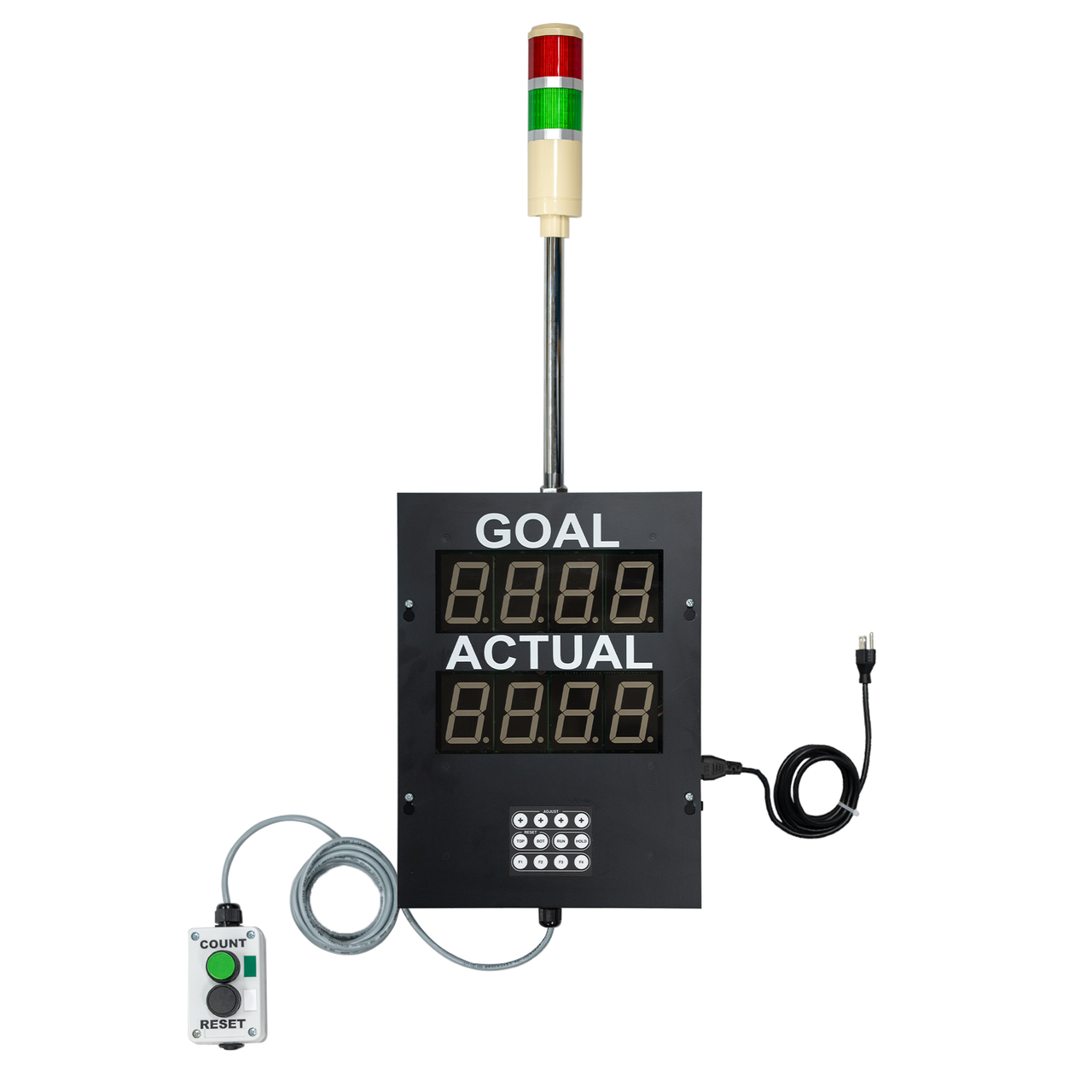

PPT with Control Switches, Tower Light - Plug & Play

• Increase productivity and downtime by setting and tracking production rates
• Top red line is production goal, bottom green line is actual production
• 4 by 3 matrix keypad control for operator interface
• NEMA 1, black painted cabinet is 16 gauge steel
• 120 VAC, 50/60 Hz at .5 amps for power
• 11" wide, 15" tall, 3.5" deep
• 2.3 inch high 7-segment LED modules
• Production pace interval from 0.1 to 9999 seconds
• 5 day memory retention with no power

Inputs + Communication:

• 12 VDC (N.O. or npn transistor) for count, hold, goal and actual reset
• Communication for remote data monitoring:
• RS 232 full duplex (rated for 50 ft cable)
• RS-422 simplex (rated for 4000 ft. cable)
• RRS-485 half duplex (rated for 4000 ft. cable)
• Baud rates of 1200, 9600, 19200 (switch selectable)
• Up to 63 units can be serially daisy chained to monitor by PC

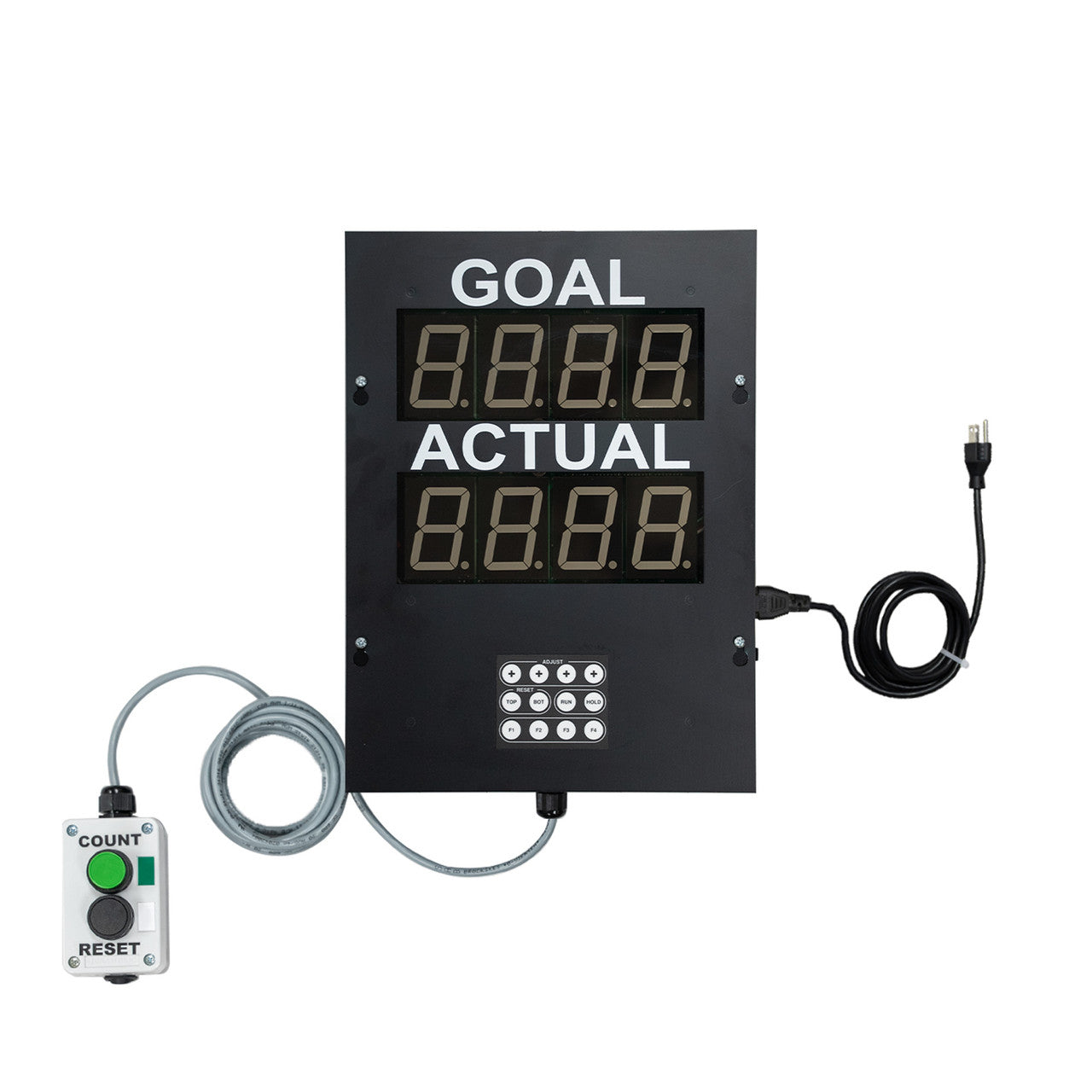

• Manual count and run/hold box (PPT-051)

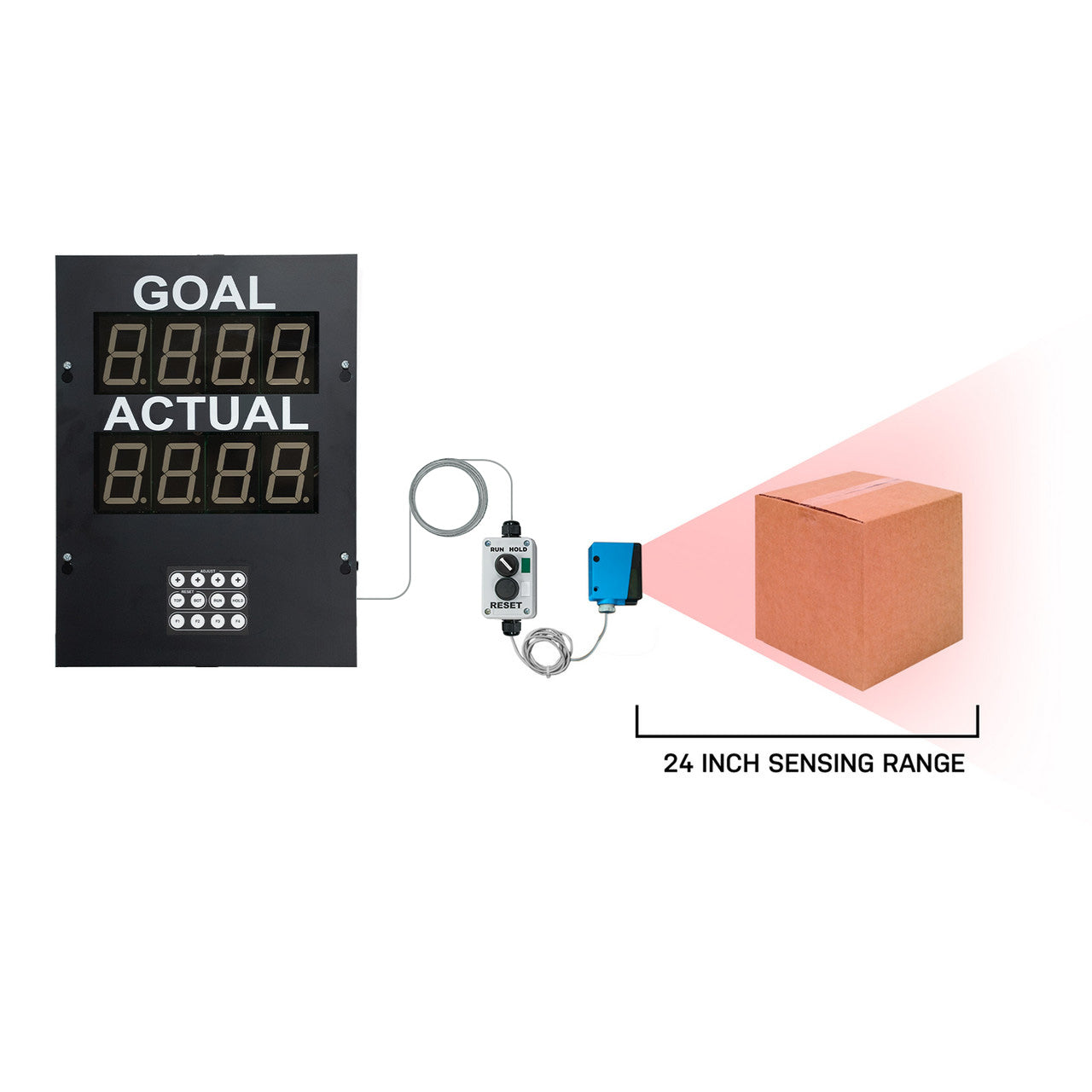

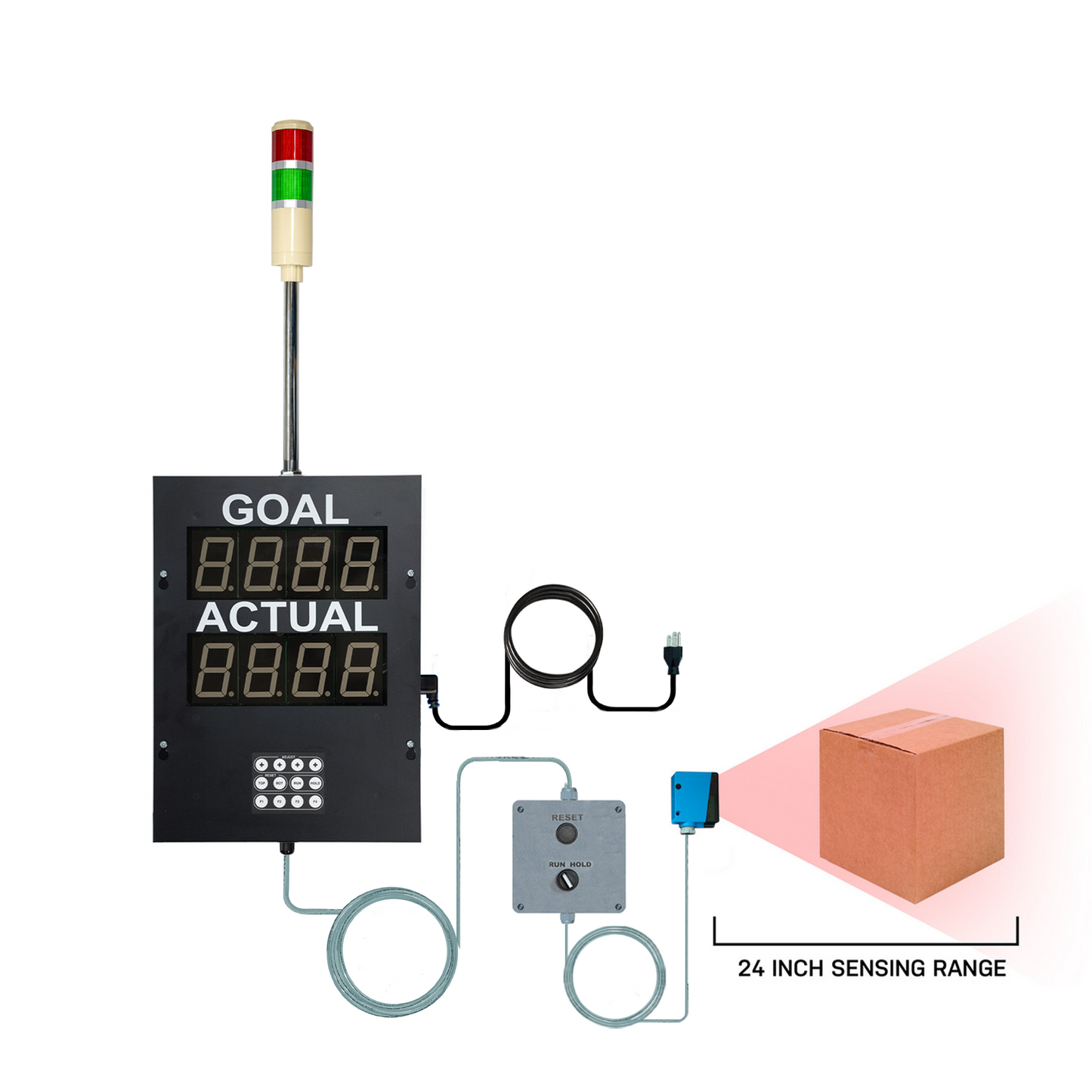

• Retro-reflective photo kit with run/hold switch box (PPT-031)
• Remote control box
• Red, yellow, or green LED segments
• Double sided display available
• Four inch high character and 4 or 6 digit display
• Three or four line display for efficiency and deviation
• NEMA 12 enclosure
• Free visual basic monitoring program available
