Wall Plate Multi-Color Pilot Light 30mm

Wall Plate Multi-Color Pilot Light 30mm

Wall Plate Color


Regular price $59.00
Regular price Sale price $59.00
Sale Call for Quote

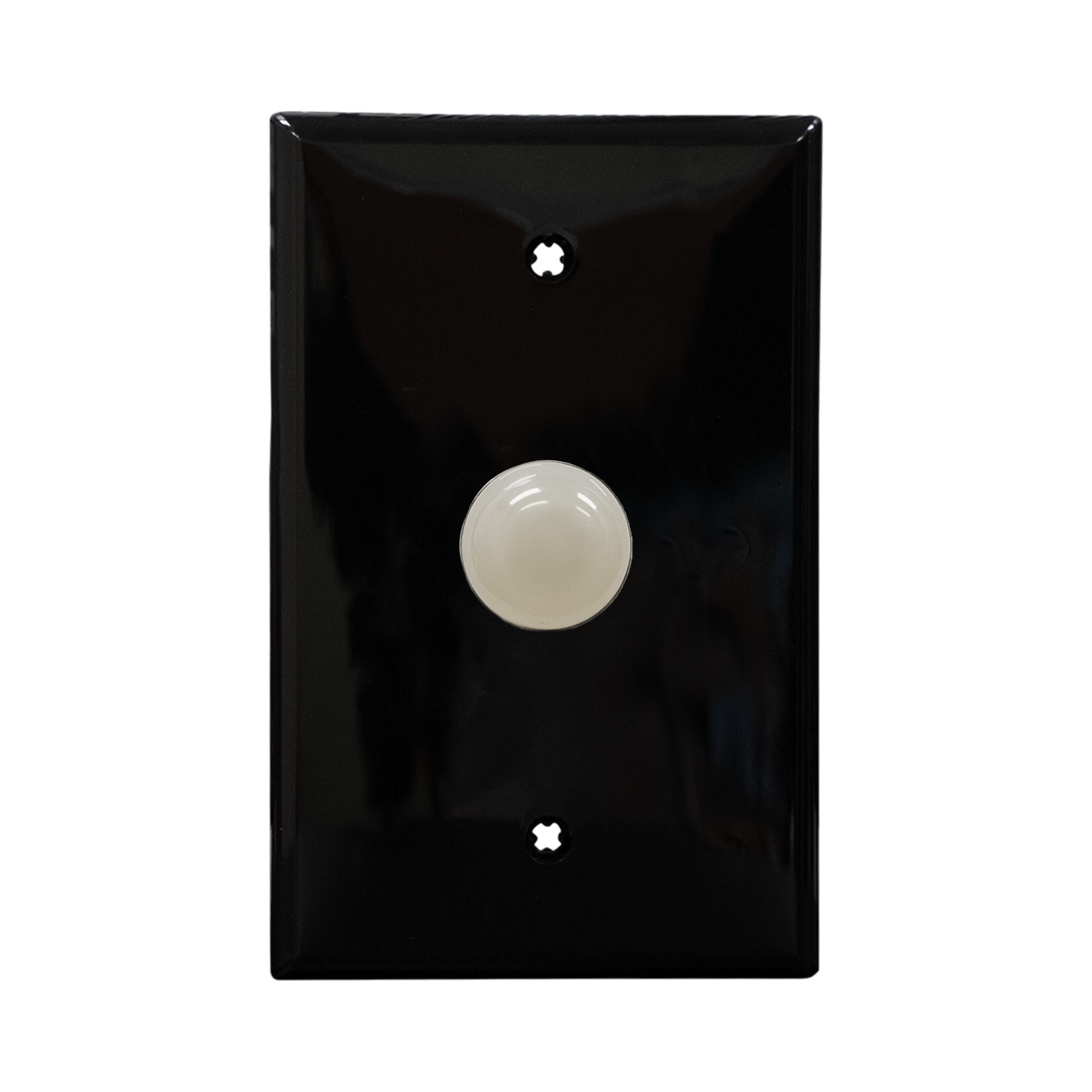

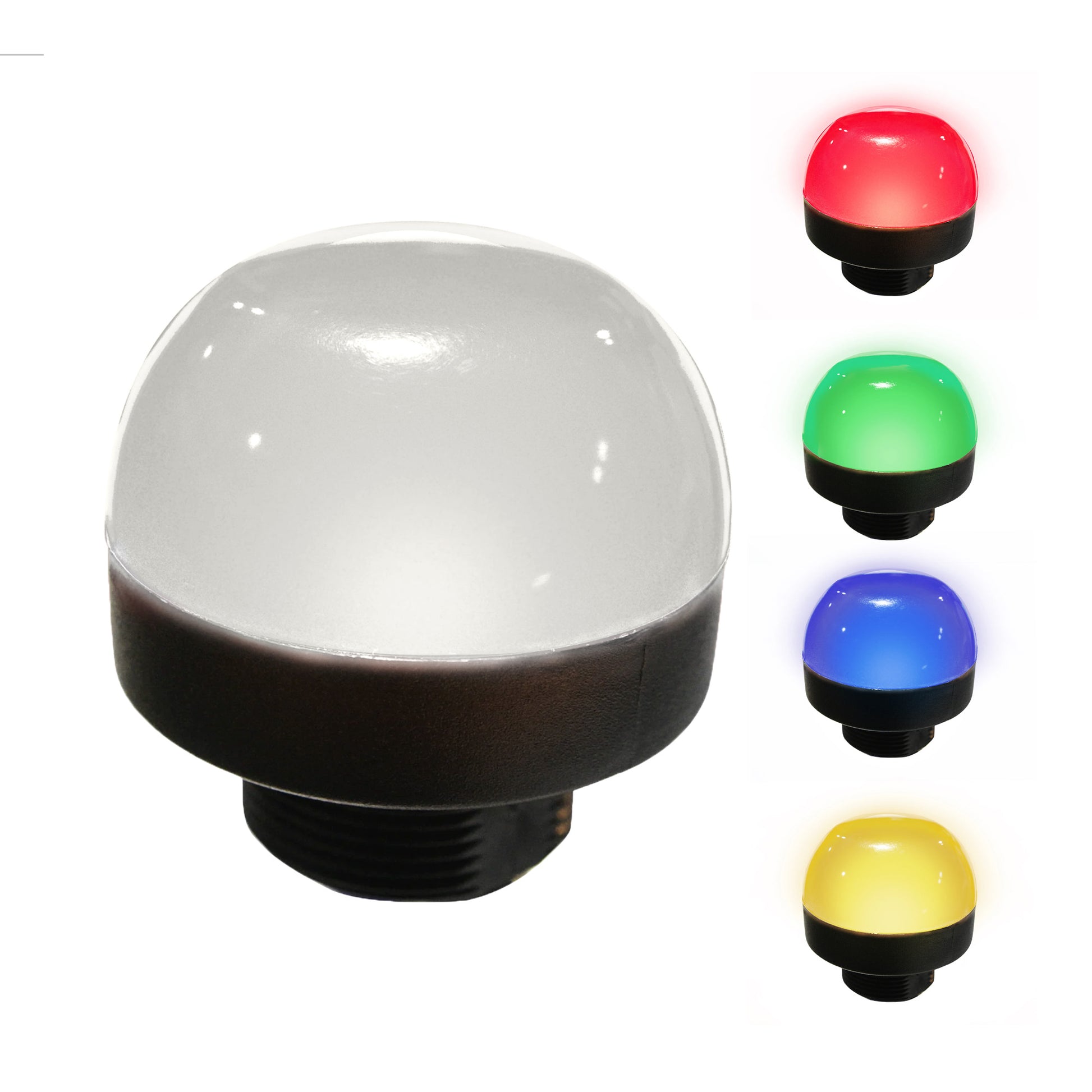

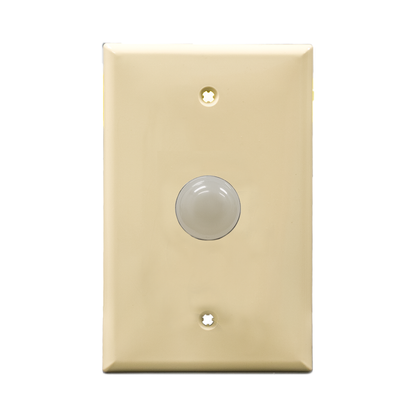

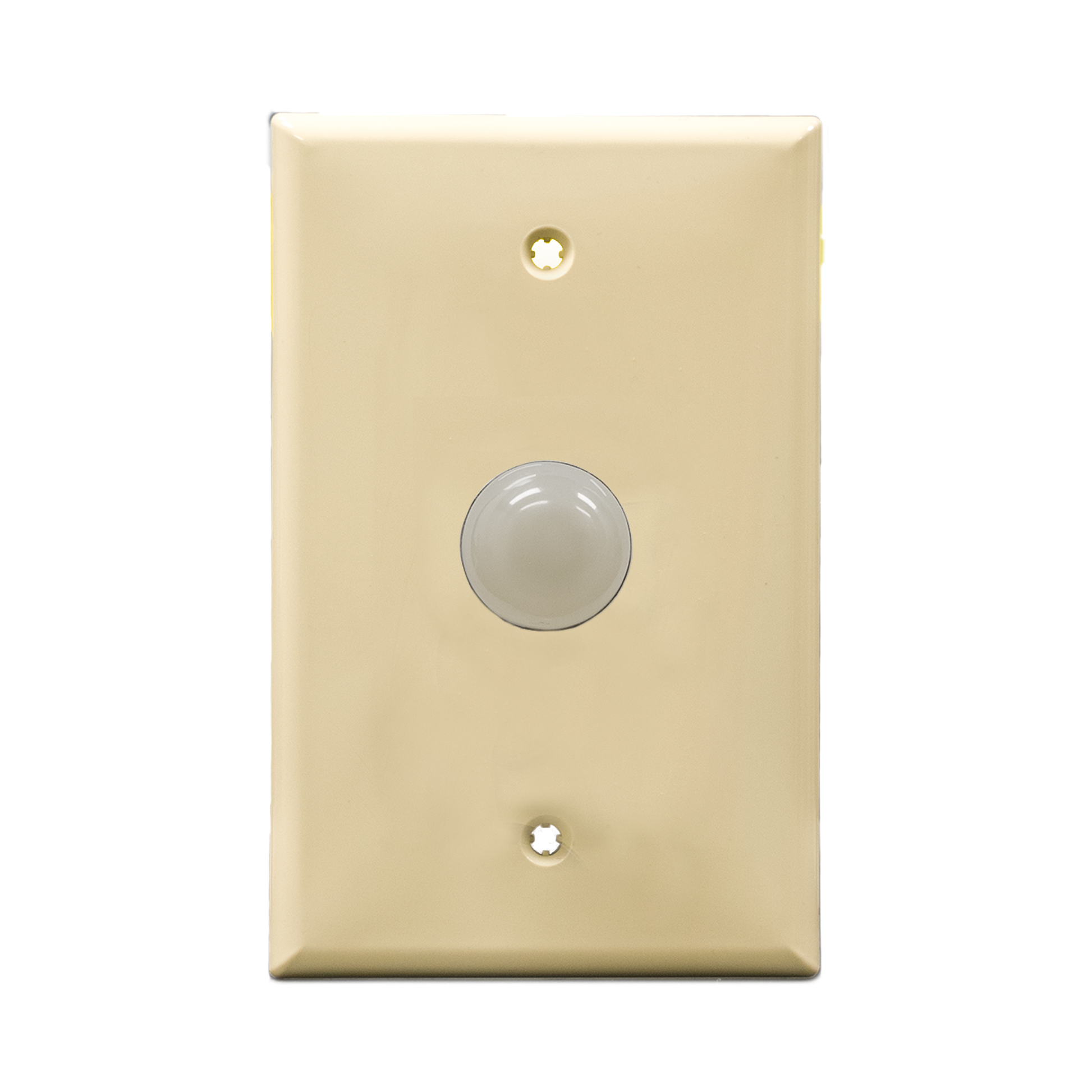

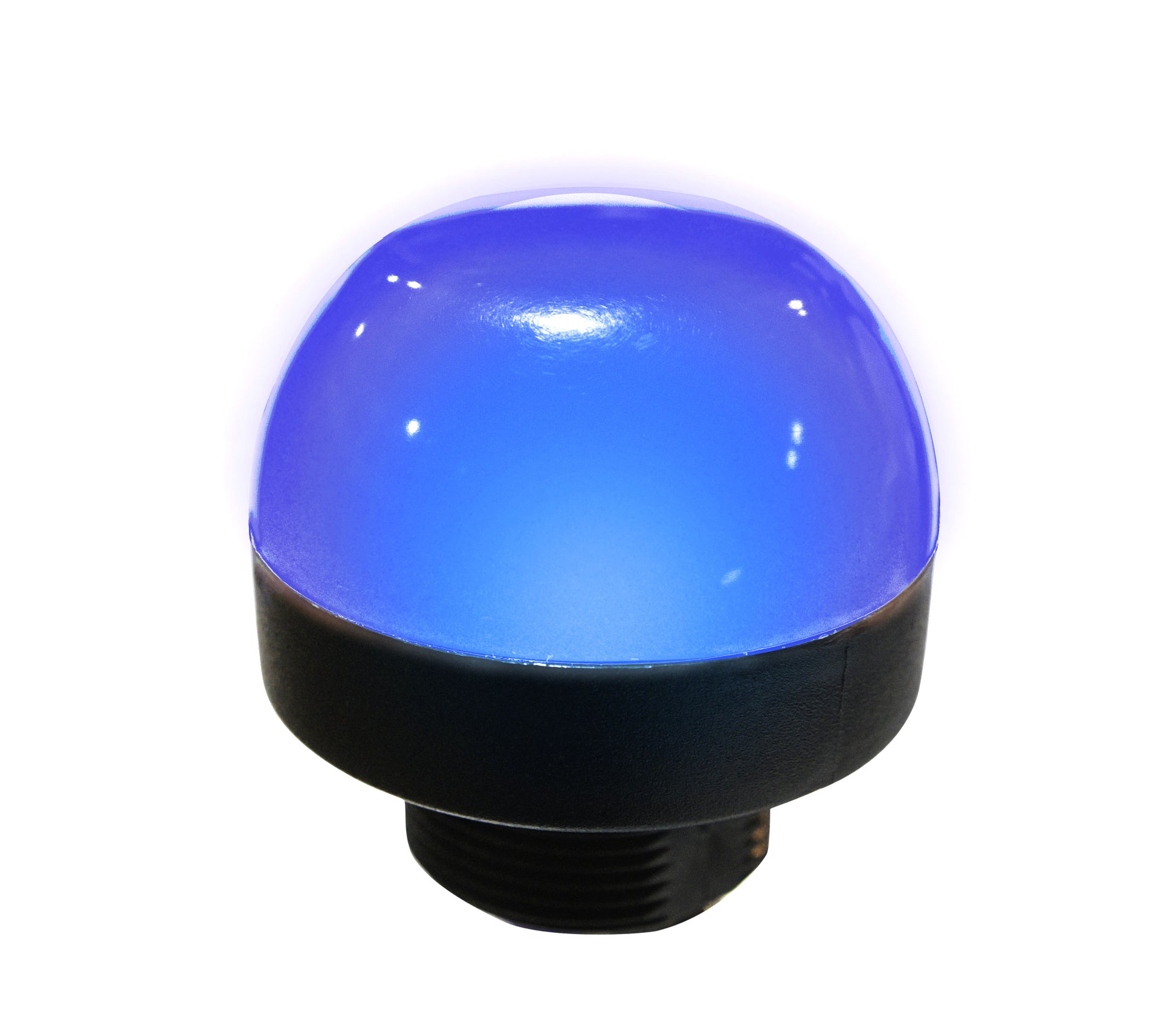

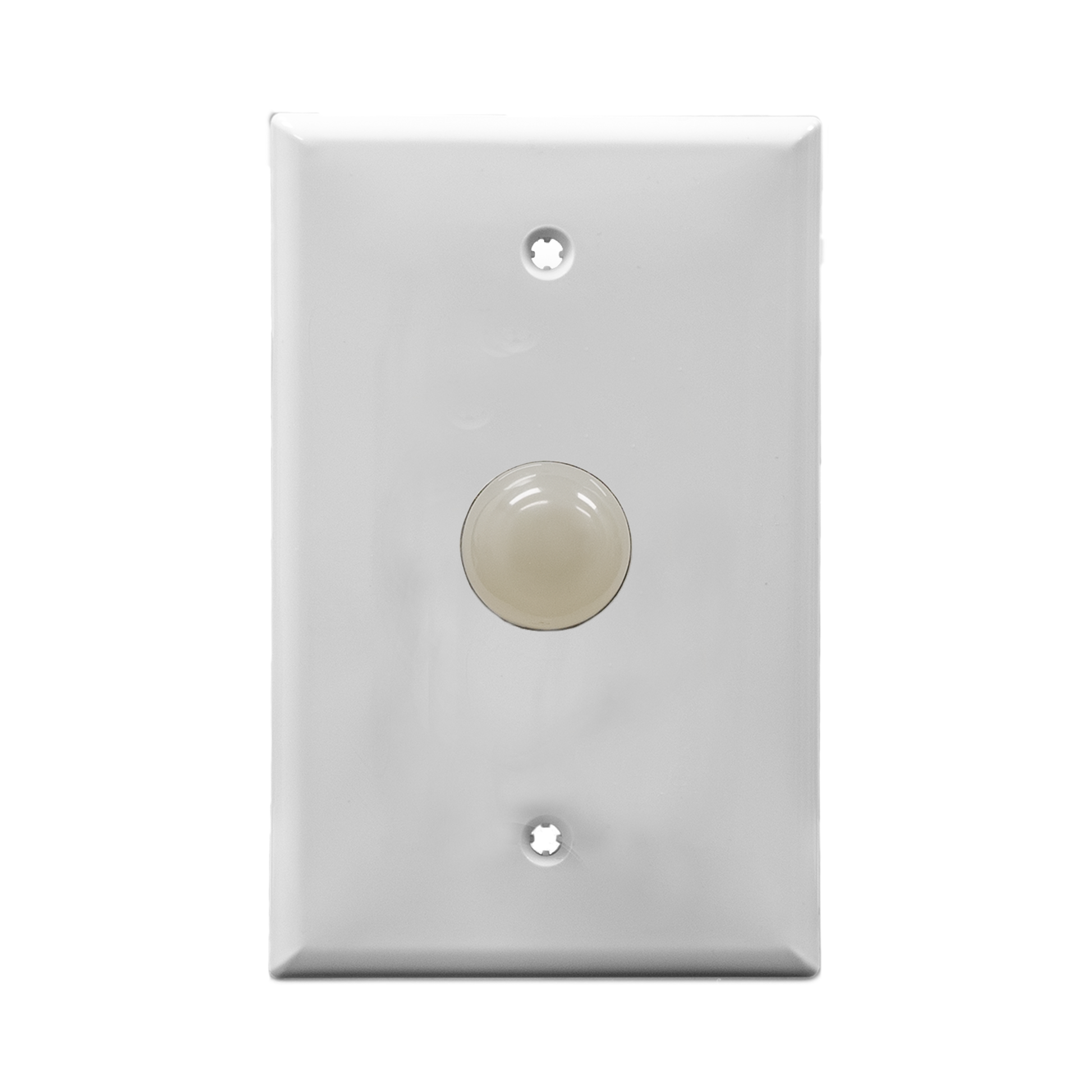

The Signaworks K30L Series Multi-Colored LED 30mm Pilight Lights have a resin poured dome light giving it 360° visibility. The light is mounted on a switch Wall Plate of your color. Our bright LEDs are strong enough to easily display statuses in well lit manufacturing and warehouse floors.

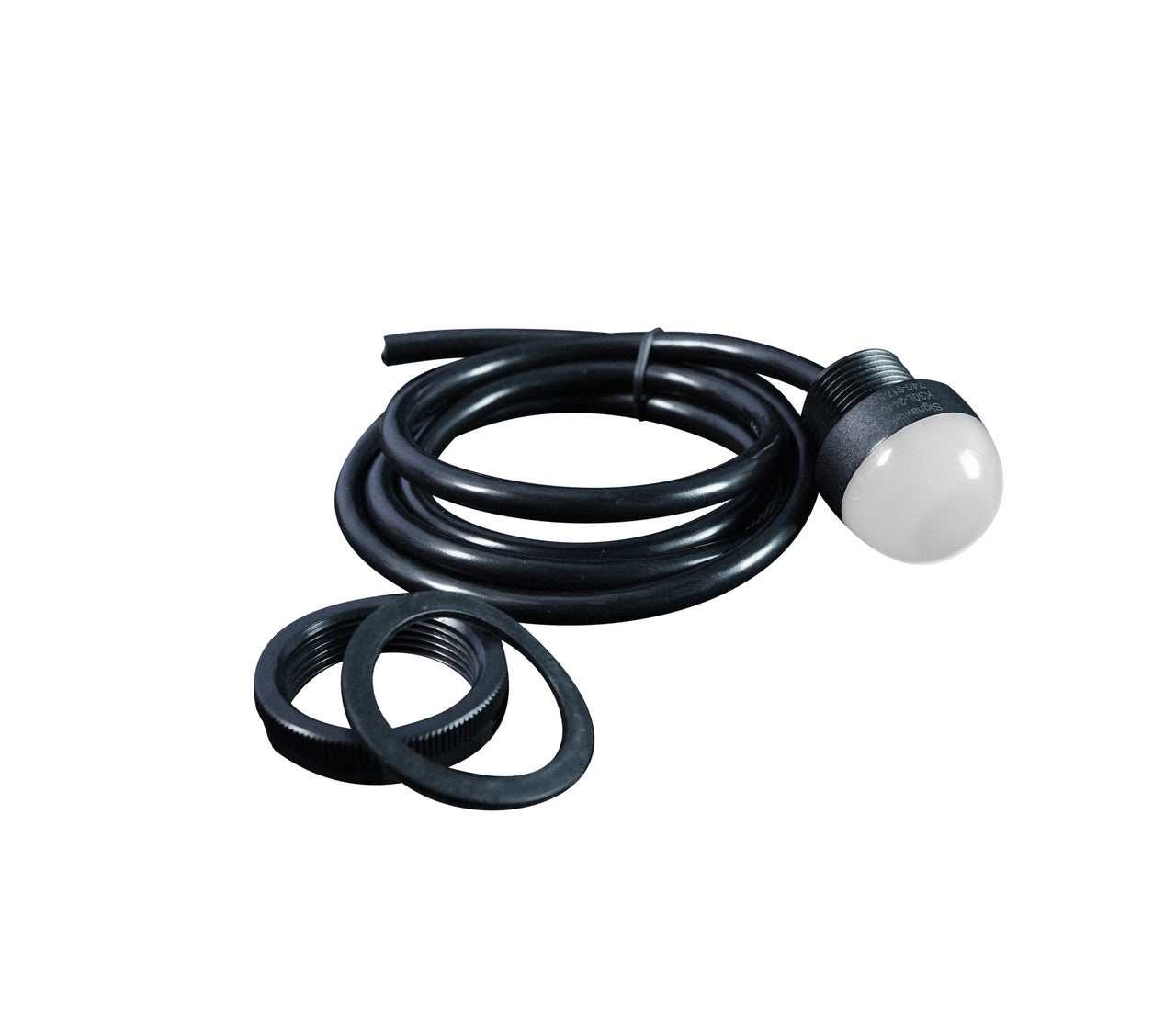

  • K30L Series From Signaworks
  • 24V dc(10% fluctuation)
  • 80mA@12V dc; 40mA @24V dc

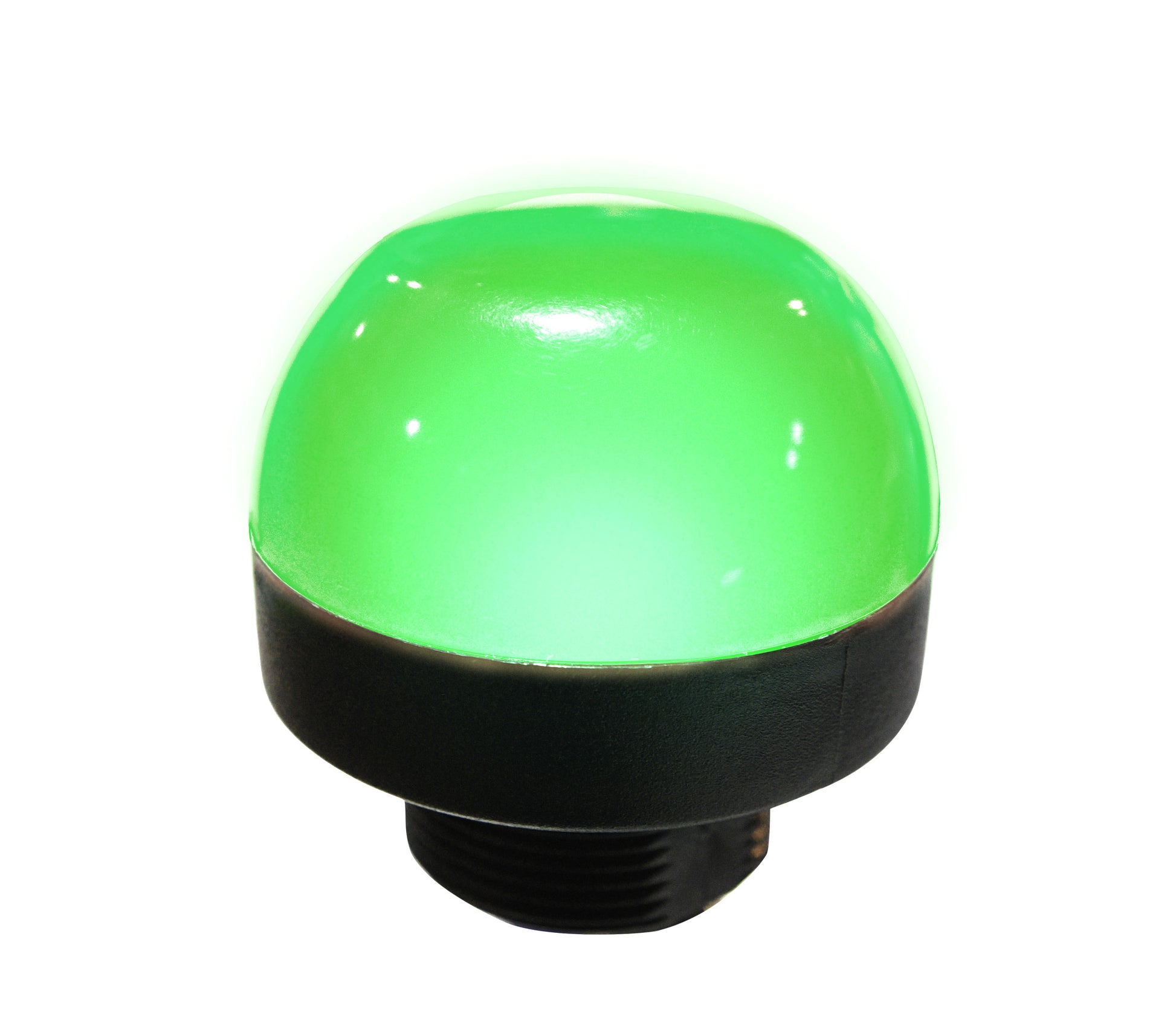

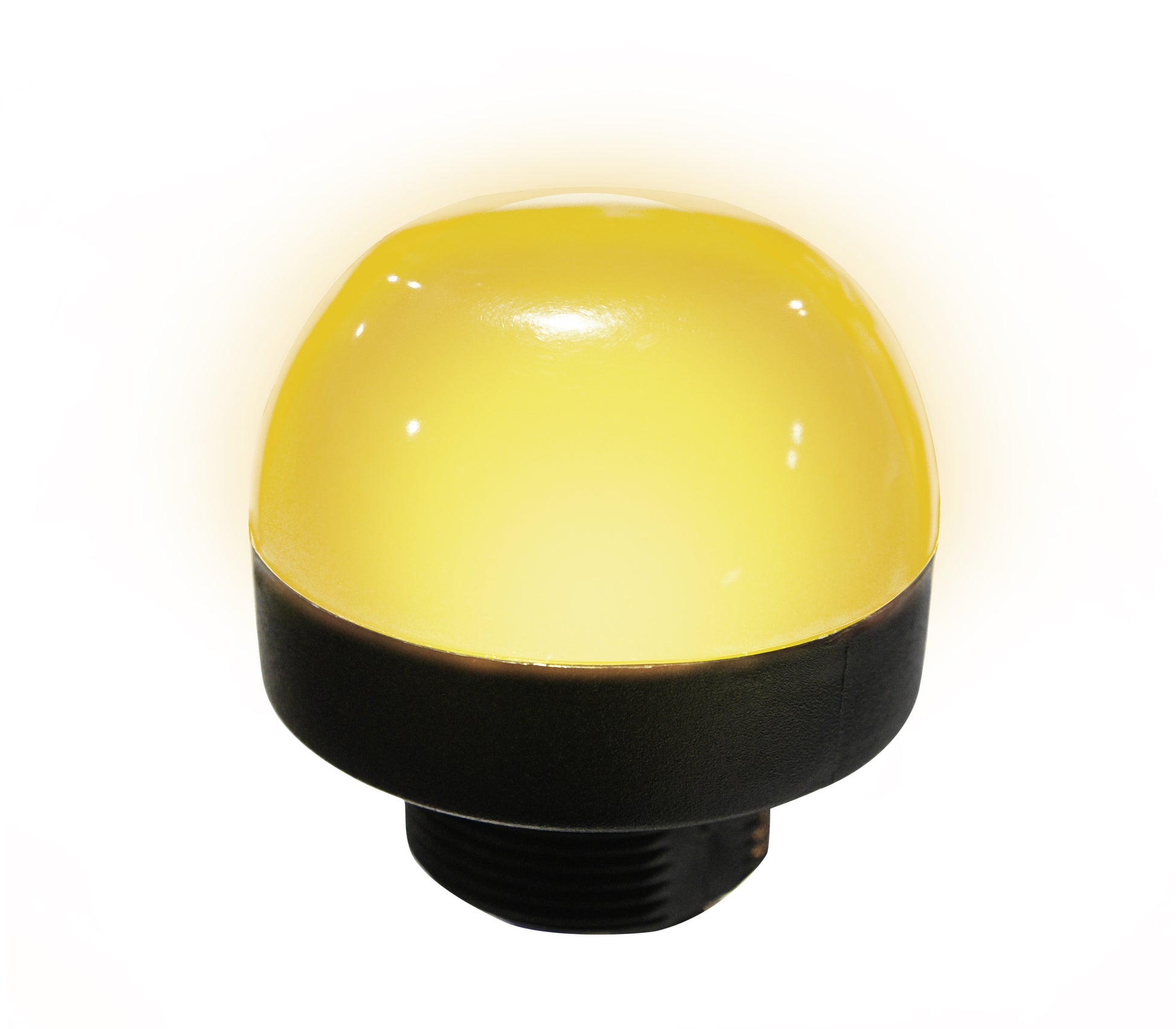

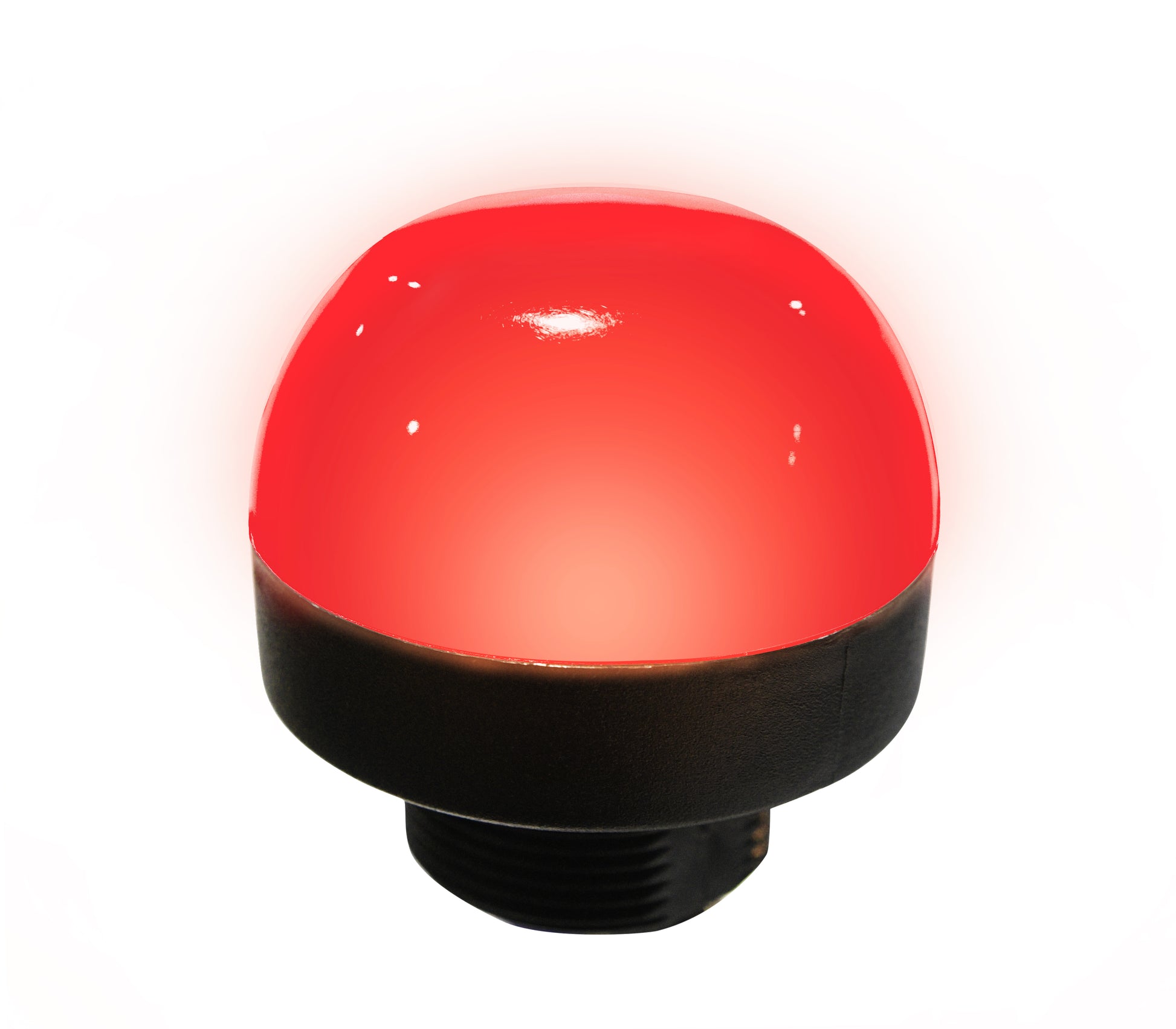

  • Colors: Red, Amber, Green and Blue. (All Color can be combined for White)
  • Body: Black
  • Working Temperature: -40°C ~50°C
  • Max Op. Relative Humidity: 95% at 50°C
  • IP Rating: IP69K
  • Dimension: 30mmx38.2mm
  • Mounting Thread: M22x1.5mm
  • Material: ABS and Polycarbonate
  • Approval: CE and FCC
