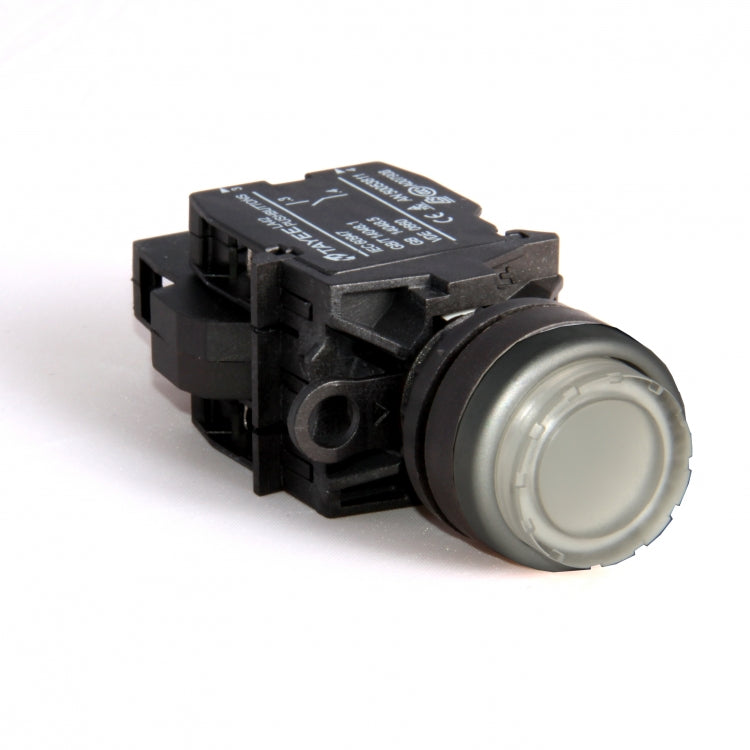

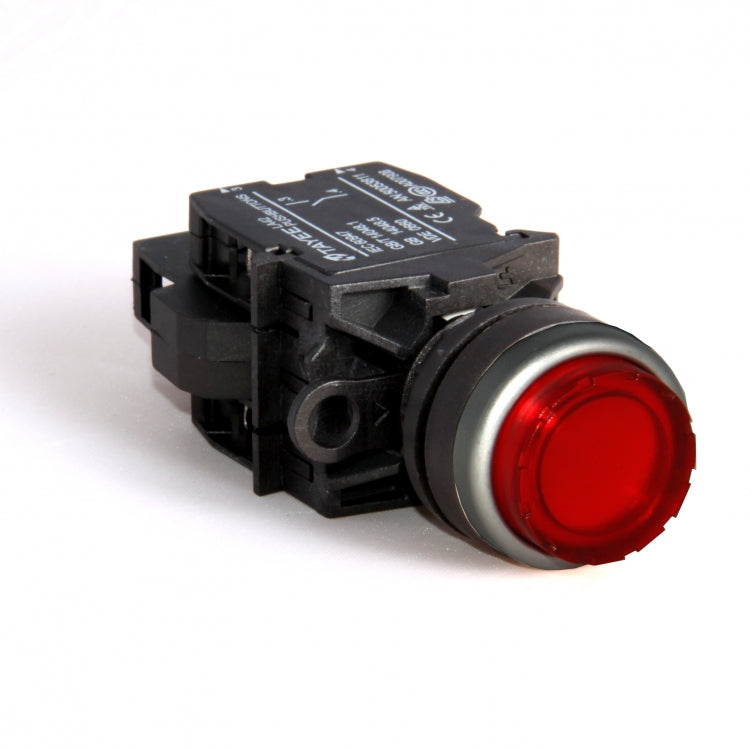

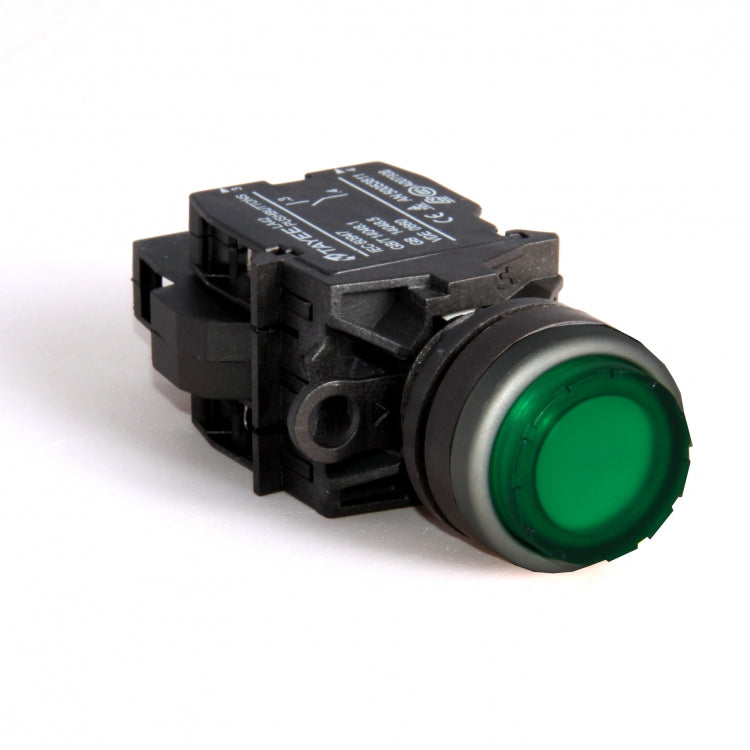

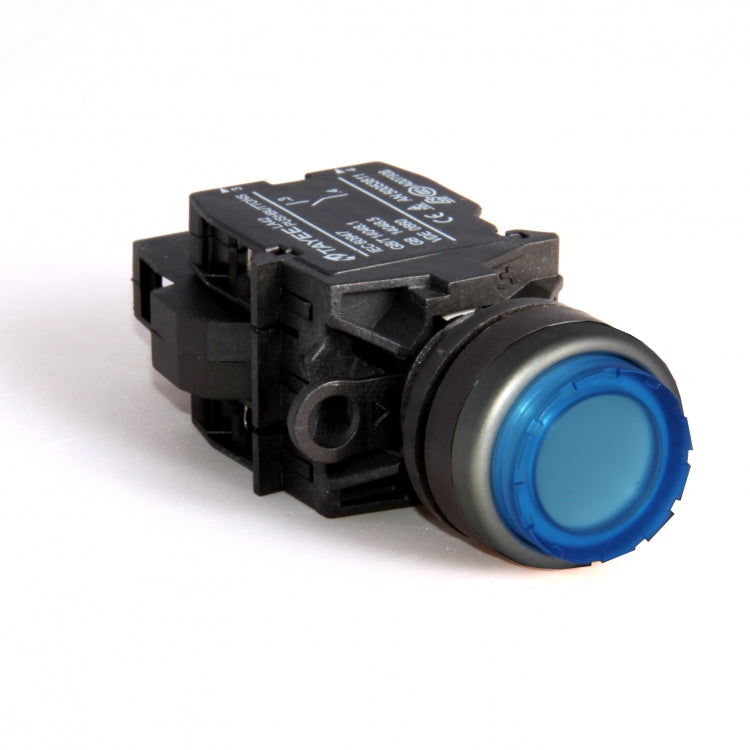

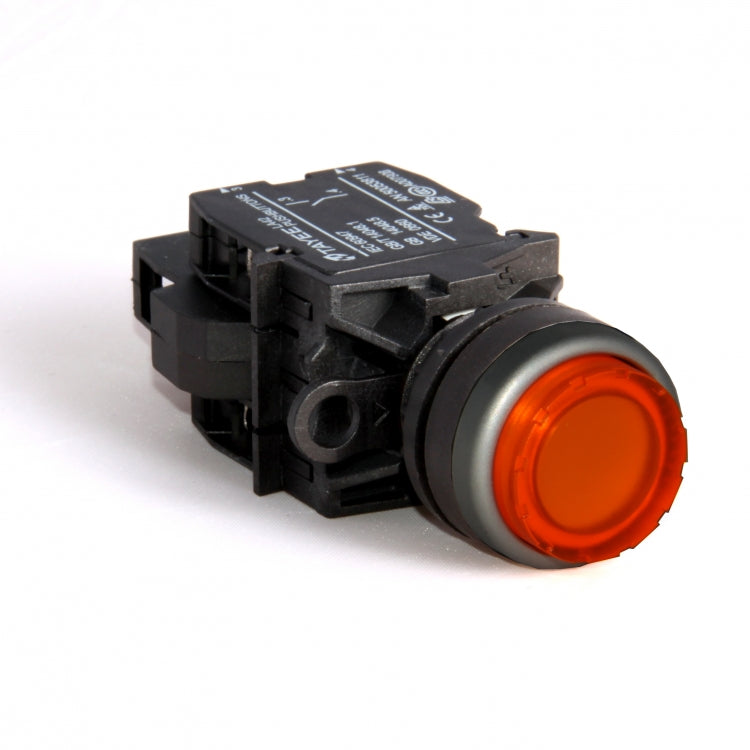

Illuminated Maintained Push Buttons
Illuminated Maintained Push Buttons
SKU:SW-2837-112
Regular price
$23.05
Regular price
Sale price
$23.05
Unit price
/
per
Couldn't load pickup availability
22mm panel mount switches offer LED illumination. Push on/push off operation. LED technology for long lifespan.
Illuminated switch provides easy visibility of switch state. This 22mm (7/8") maintained push on/push off button switch includes 2 removable normally open (N.O.) contact blocks for applications requiring a maintained double pull single throw (D.P.S.T) contact signal. With an extended face, this push button provides easy access and illumination
Specifications
Weight: 0.25 pounds
Power Voltage: 24VDC, 120VAC
Logic Voltage: 24VDC, 120VAC
NEMA/IP Rating: IP65
Color: Red, Yellow Green, Blue, White
LED Lifespan: 25,000-50,000 Hours Typical
Contact Rating: ~250,000 operations @ 20Hz
Contact Type: (2) NO Contacts Per Switch
