LED Multi-Color Pilot Lights - 30, 50, 90 mm

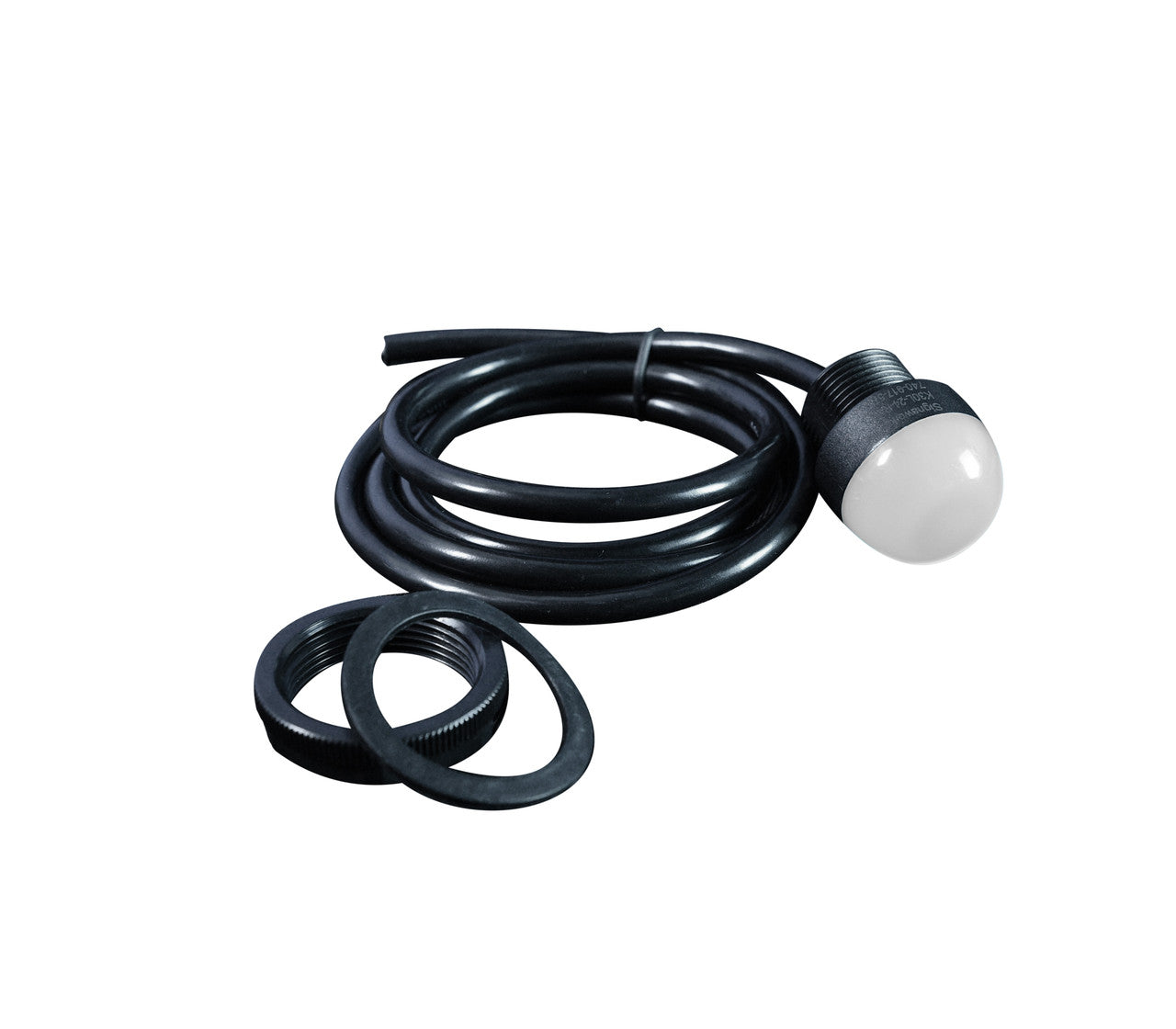

The K30L, K50L & K90L Series of lights have a resin poured dome light giving it 360° visibility. Our bright LEDs are strong enough to easily display statuses in well lit manufacturing and warehouse floors.

K30L Features

• K30L Series From Signaworks
• 24V dc(10% fluctuation)
• 80mA@12V dc; 40mA @24V DC
• Colors: Red, Amber, Green and Blue. (All Color can be combined for White)
• Body: Black
• Working Temperature: -40°C ~50°C
• Max Op. Relative Humidity: 95% at 50°C
• IP Rating: IP69K
• Dimension: 30mmx38.2mm
• Mounting Thread: M22x1.5mm
• Material: ABS and Polycarbonate
• Approval: CE and FCC

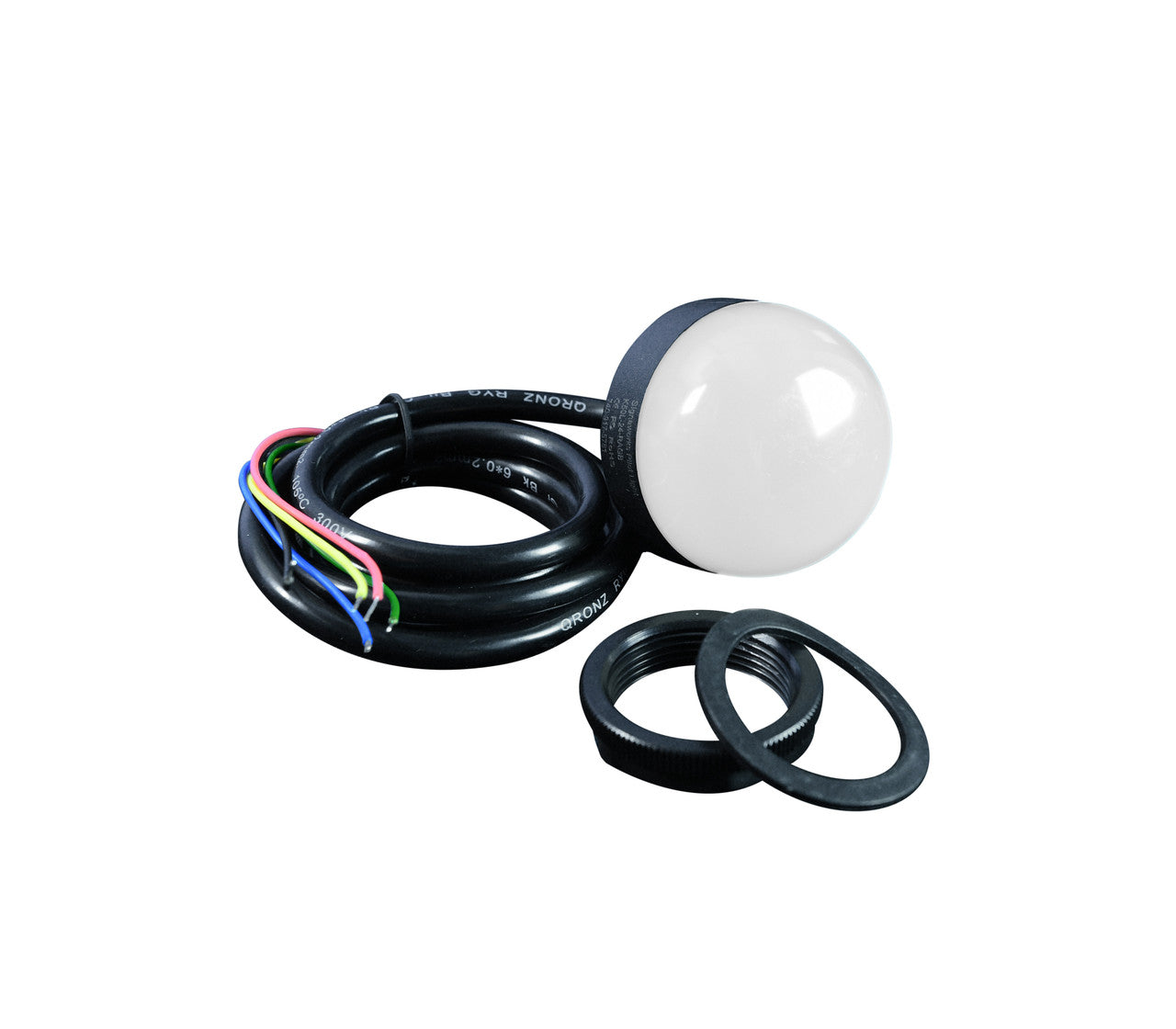

The K50L Series of lights have a resin poured dome light giving it 360° visibility. Our bright LEDs are strong enough to easily display statuses in well lit manufacturing and warehouse floors.

K50L Features

• K50L Series From Signaworks
• 12-24V dc(10% fluctuation)
• 80mA@12V dc; 40mA @24V dc
• Colors: Red, Amber, Green and Blue. (All Color can be combined for White)
• Body: Black
• Working Temperature: -40°C ~50°C
• Max Op. Relative Humidity: 95% at 50°C
• IP Rating: IP69K
• Dimension: 30mmx38.2mm
• Mounting Thread: M22x1.5mm
• Material: ABS and Polycarbonate
• Approval: CE and FCC

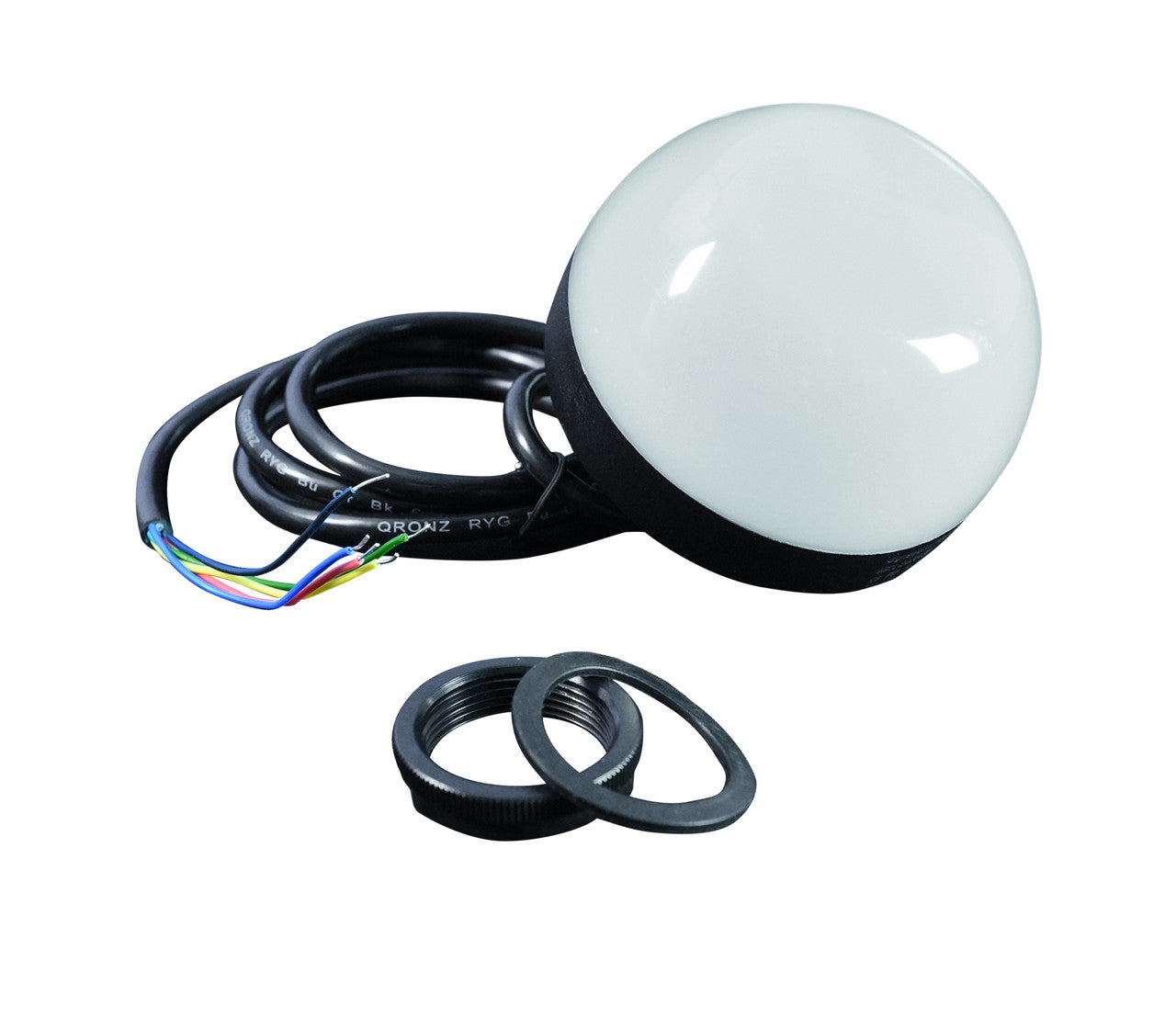

The K90L Series of lights have a resin poured dome light giving it 360° visibility. Our bright LEDs are strong enough to easily display statuses in well lit manufacturing and warehouse floors.

K90L Features

• K90L Series From Signaworks
• 24V dc(10% fluctuation)
• 80mA@12V dc; 40mA @24V dc
• Colors: Red, Amber, Green and Blue. (All Color can be combined for White)
• Body: Black
• Working Temperature: -40°C ~50°C
• Max Op. Relative Humidity: 95% at 50°C
• IP Rating: IP69K
• Dimension: 30mmx38.2mm
• Mounting Thread: M22x1.5mm
• Material: ABS and Polycarbonate
• Approval: CE and FCC
