Enclosures for 22mm Switches

Enclosures for 22mm Switches

Number of Holes


Regular price $14.44
Regular price Sale price $14.44
Sale Call for Quote

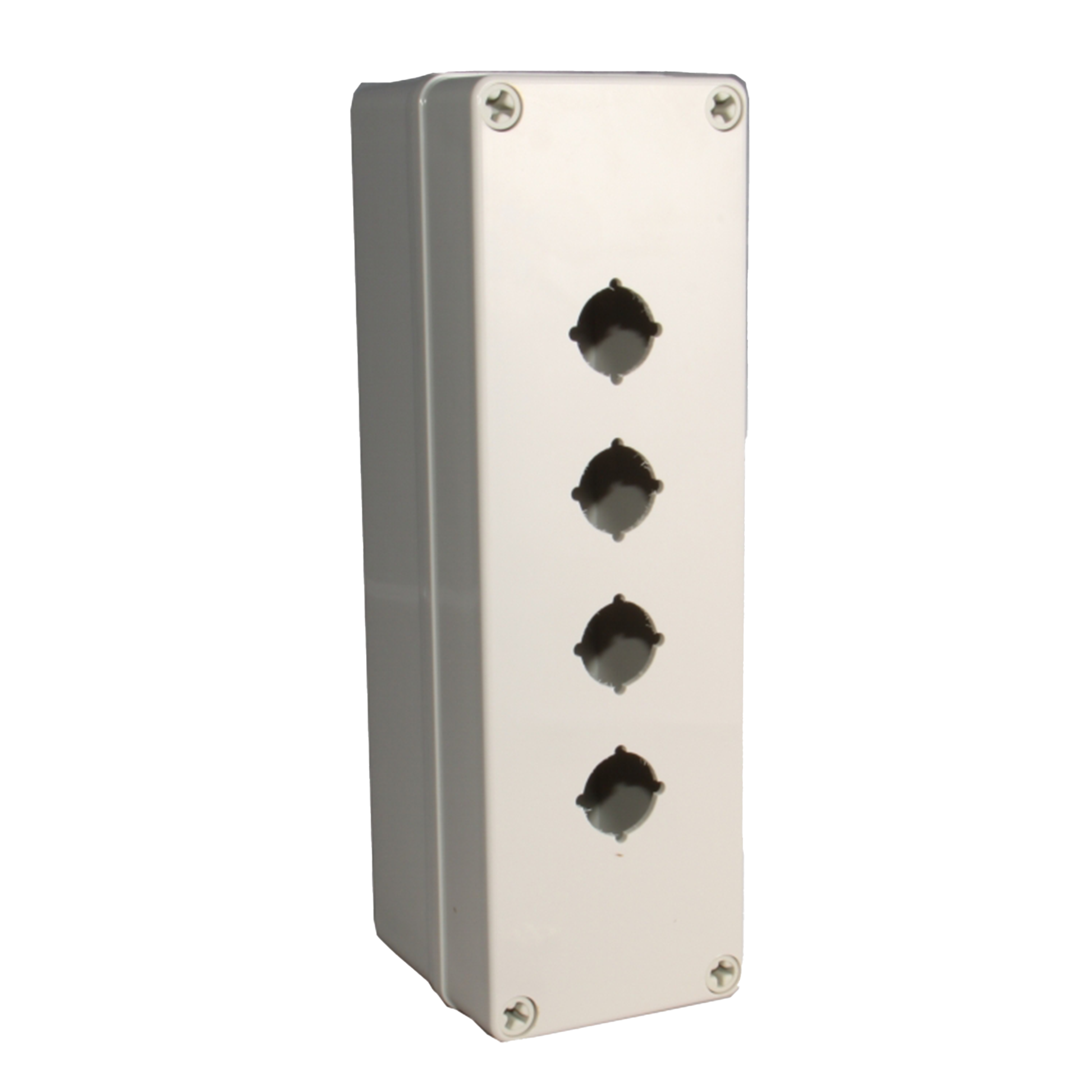

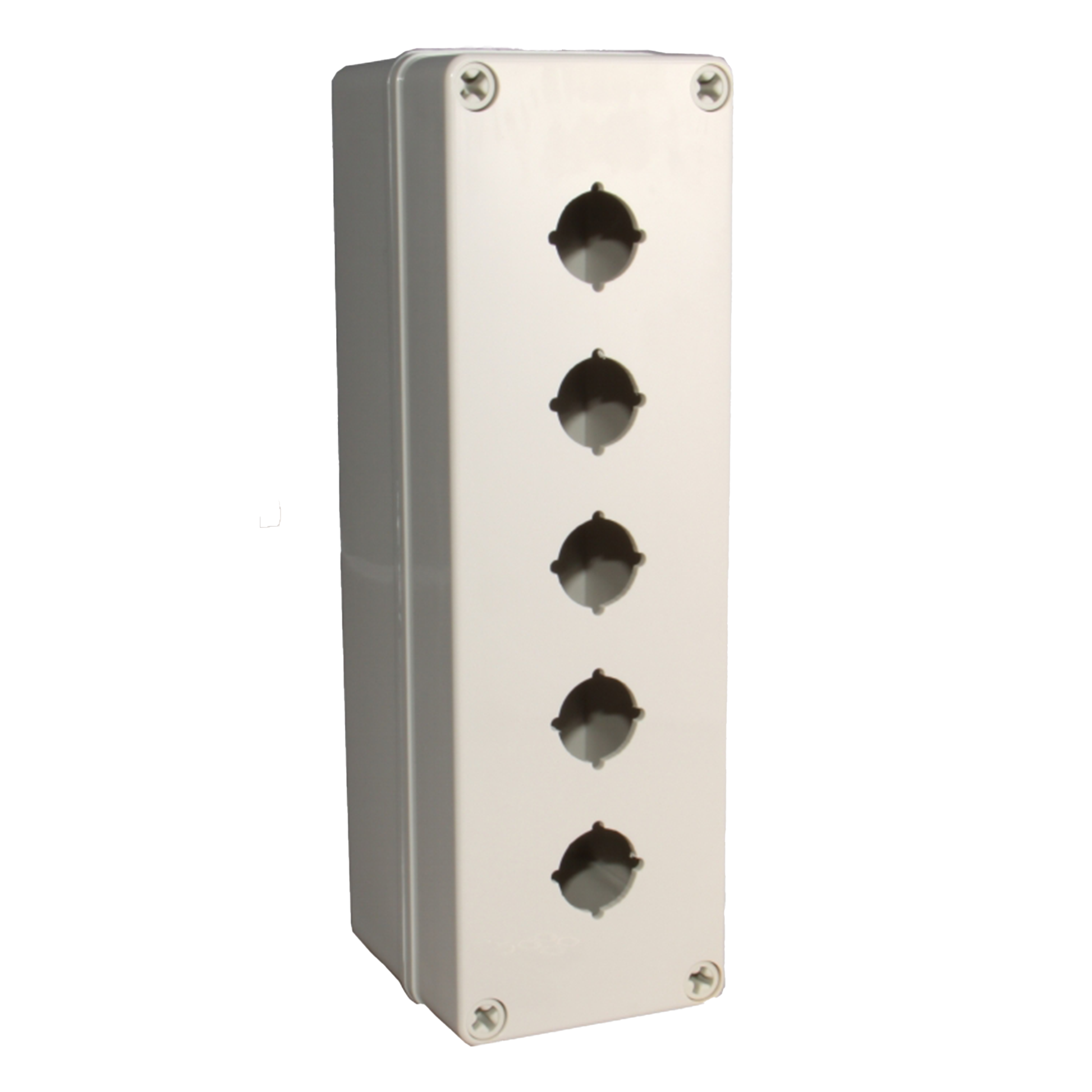

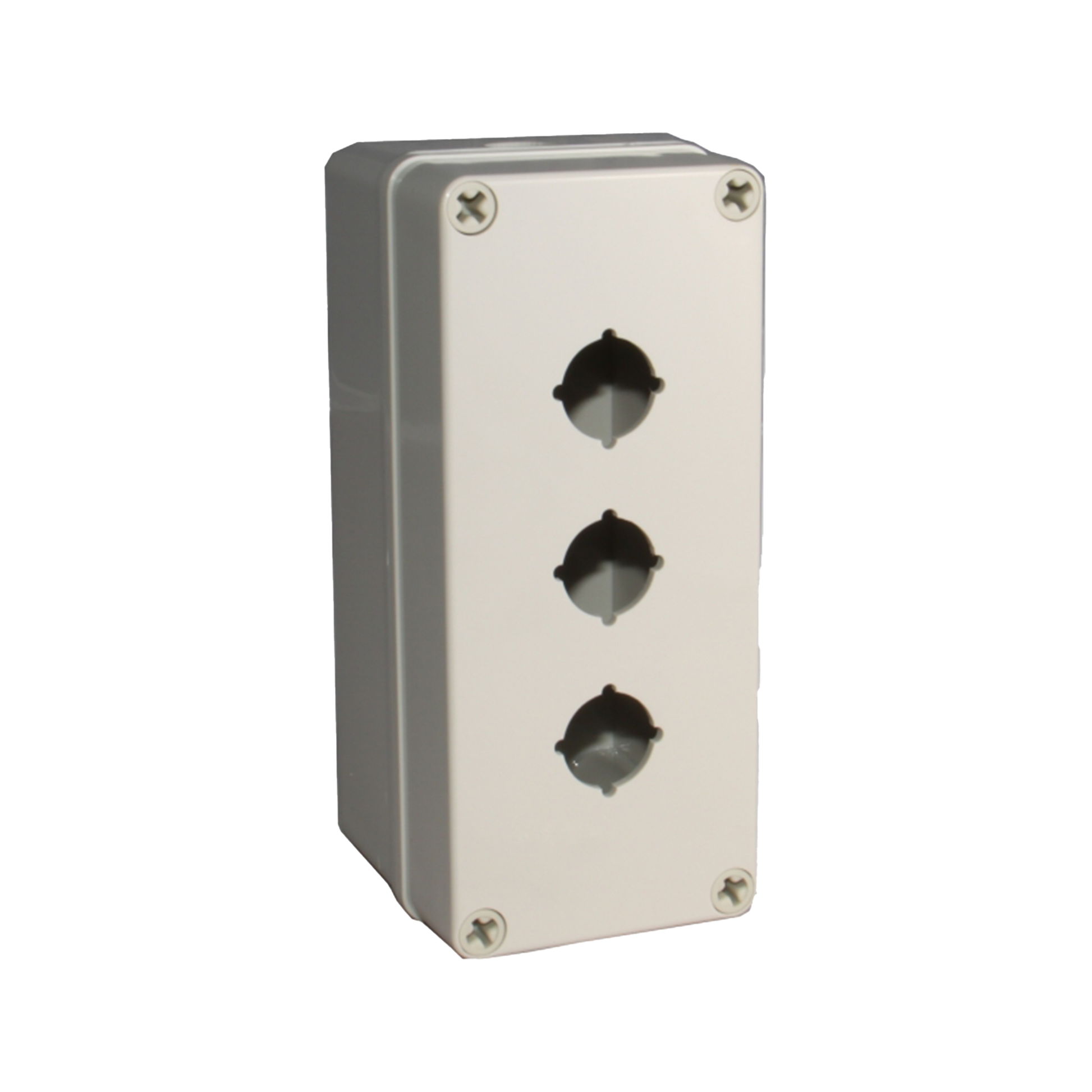

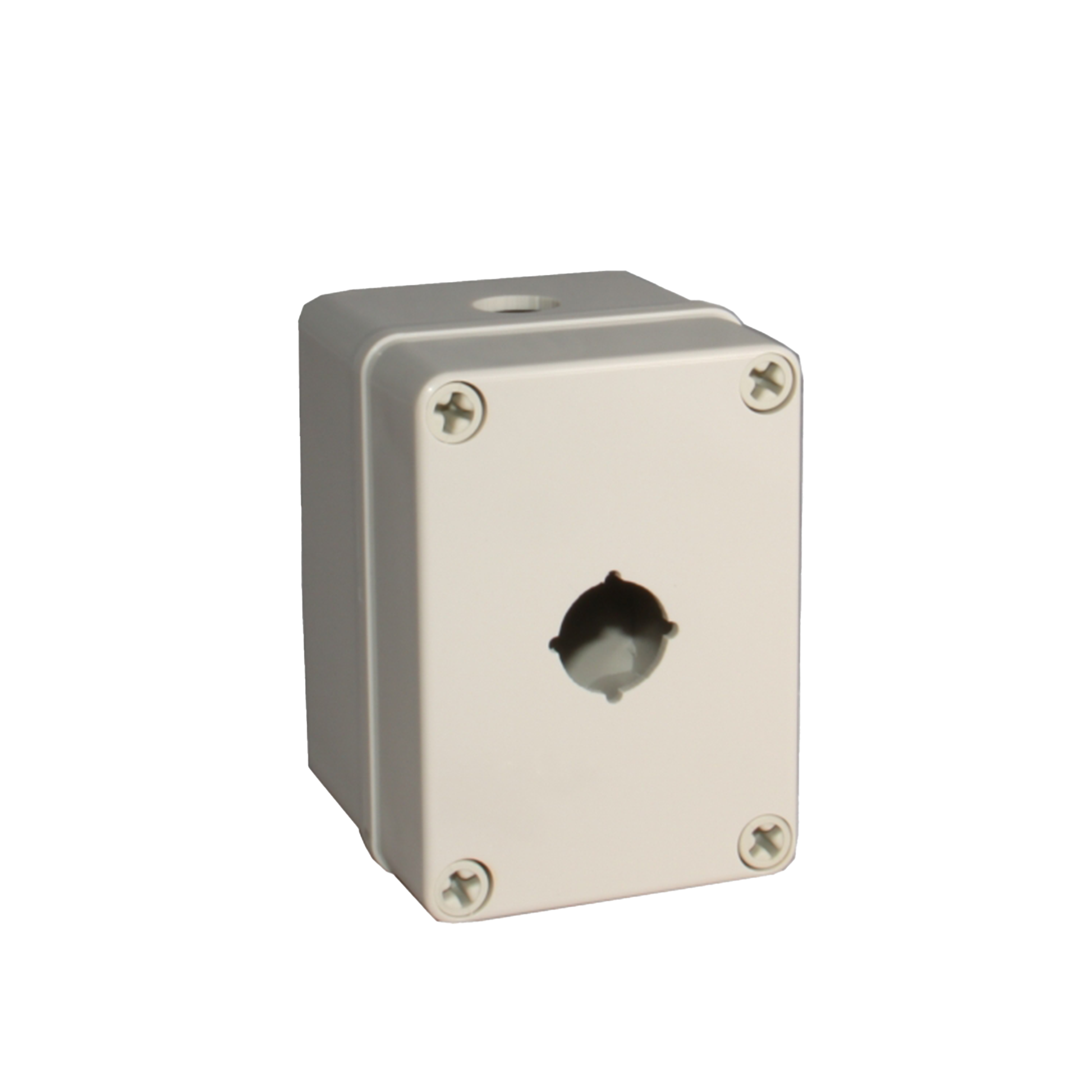

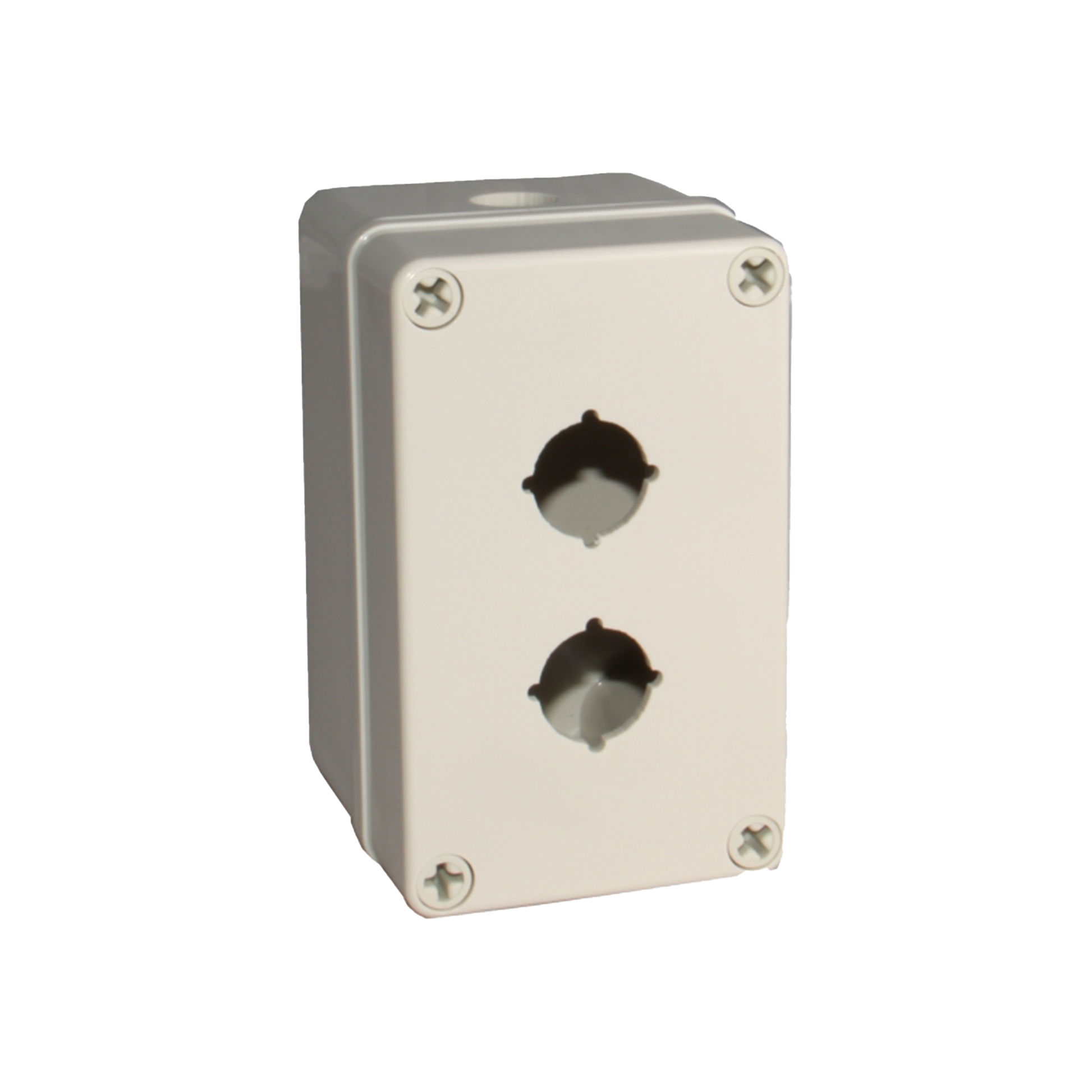

This non-metallic ABS switch box enclosure includes 1 through 5, 22mm (7/8 inch) holes on the face for the use of push buttons or selector switches. The switch holes are four way keyed for fitting keyed switches in a variety of orientations accordingly.

Four mounting holes are provided for wall / machine mounting options.

Specifications: Temperature range: -40 to +80 degrees centigrade Anti-Impact rating: IK07 Flame Rating: V0 Sealant: IP66

About ABS Plastic: ABS or Acrylonitrile butadiene styrene, plastic is a common thermoplastic used to make a variety of diverse products. Although it is more costly than polystyrene plastics, ABS is notably superior for mechanical purposes due to its hardness, gloss, toughness, and electrical insulation properties.

Dimensions: 3.15" W x 7.087" T x 3.347" D

Weight: 0.75 pounds

NEMA/IP Rating: IP66

Color: Industrial Gray

Array:  22mm Pre-Drilled 3 Hole
