Light Station Kits

Light Station Kits

Operation
Number of Lights

SKU:KT-5211-100

Regular price $95.00
Regular price Sale price $95.00
Sale Call for Quote

Quantity Orders May Be Bulk Packed

Continuous - This kit is designed to assist in the grouping of component parts to build a complete 1 - 5 Section Red/Amber/Green/Blue/White Andon Tower light switch station. In so doing, one could be assured that the components will work together eliminating any tolerance issues, improper component choices, and so on.

Continuous/Flashing - This kit is designed to assist in the grouping of component parts to build a complete 5 Section Red/Amber/Green/Blue/White Andon Tower light switch station. In so doing, one could rest assured that the components will work together eliminating any tolerance issues, improper component choices, and so forth.

This kit is wiring optional for the choice of flashing OR solid light actuation (OFF/Flashing or OFF/Steady). This kit includes a 2 position switch therefore it cannot be wired for Steady/OFF/Flashing activation; please refer to KT-5215-102 or call 614-851-1100 for further assistance.

Continuous & Flash - This kit is designed to assist in the grouping of component parts to build a complete 5 Section Red/Amber/Green/Blue/White Andon Tower light switch station. In so doing, one could rest assured that the components will work together eliminating any tolerance issues, improper component choices, and so forth.

This kit is wiring optional for the choice of flashing AND solid light actuation. This kit includes 3 position switches therefore it can be wired for Steady/OFF/Flashing activation.

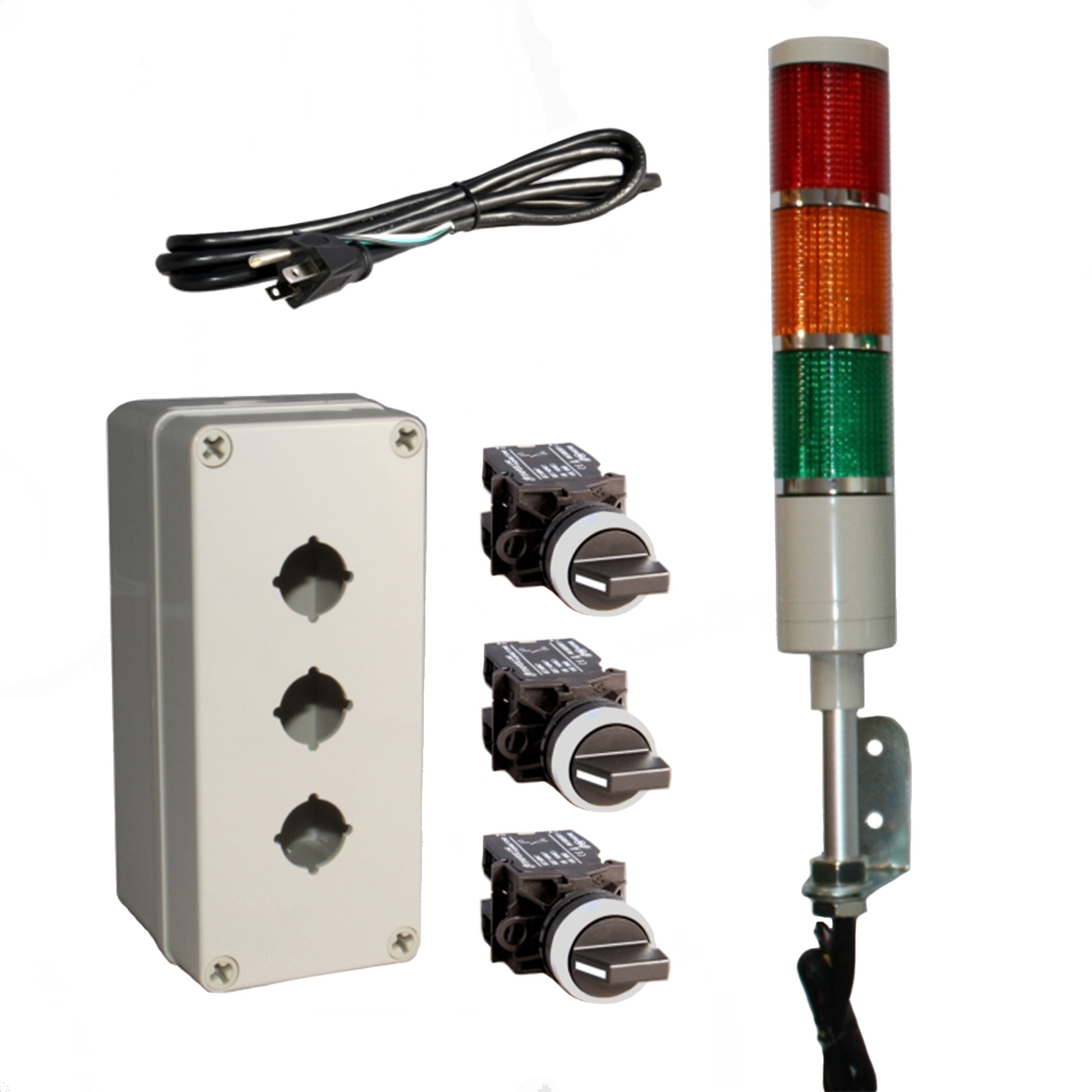

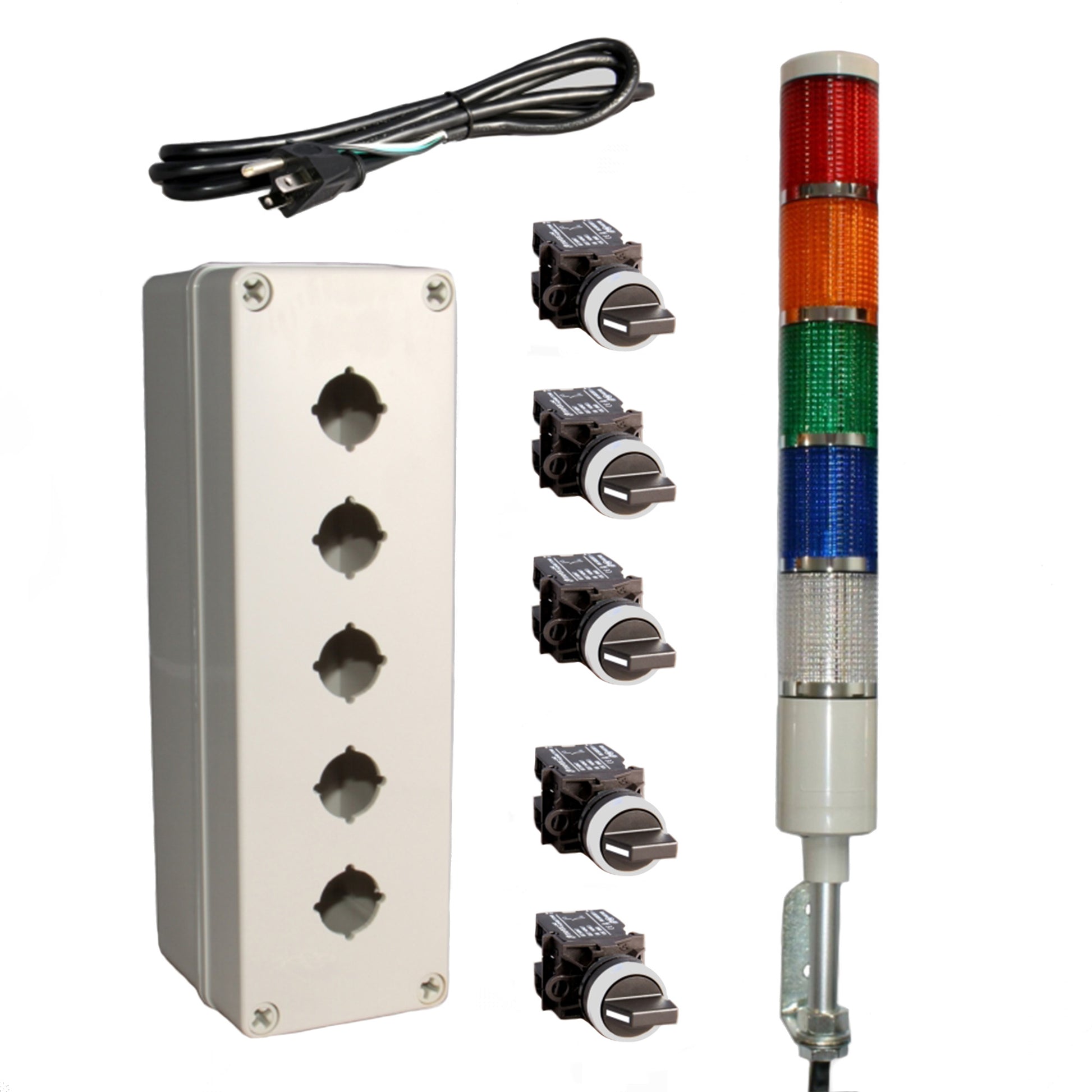

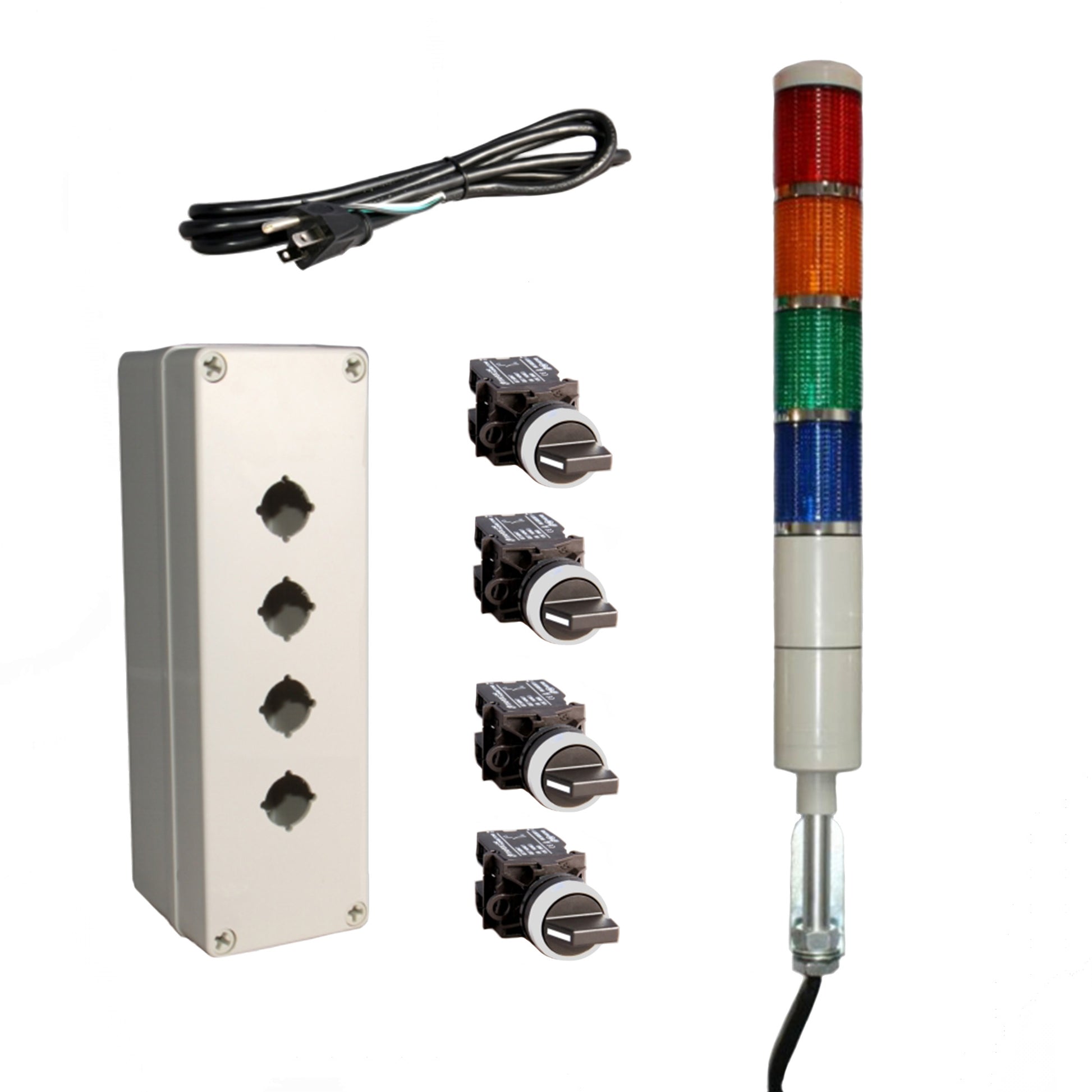

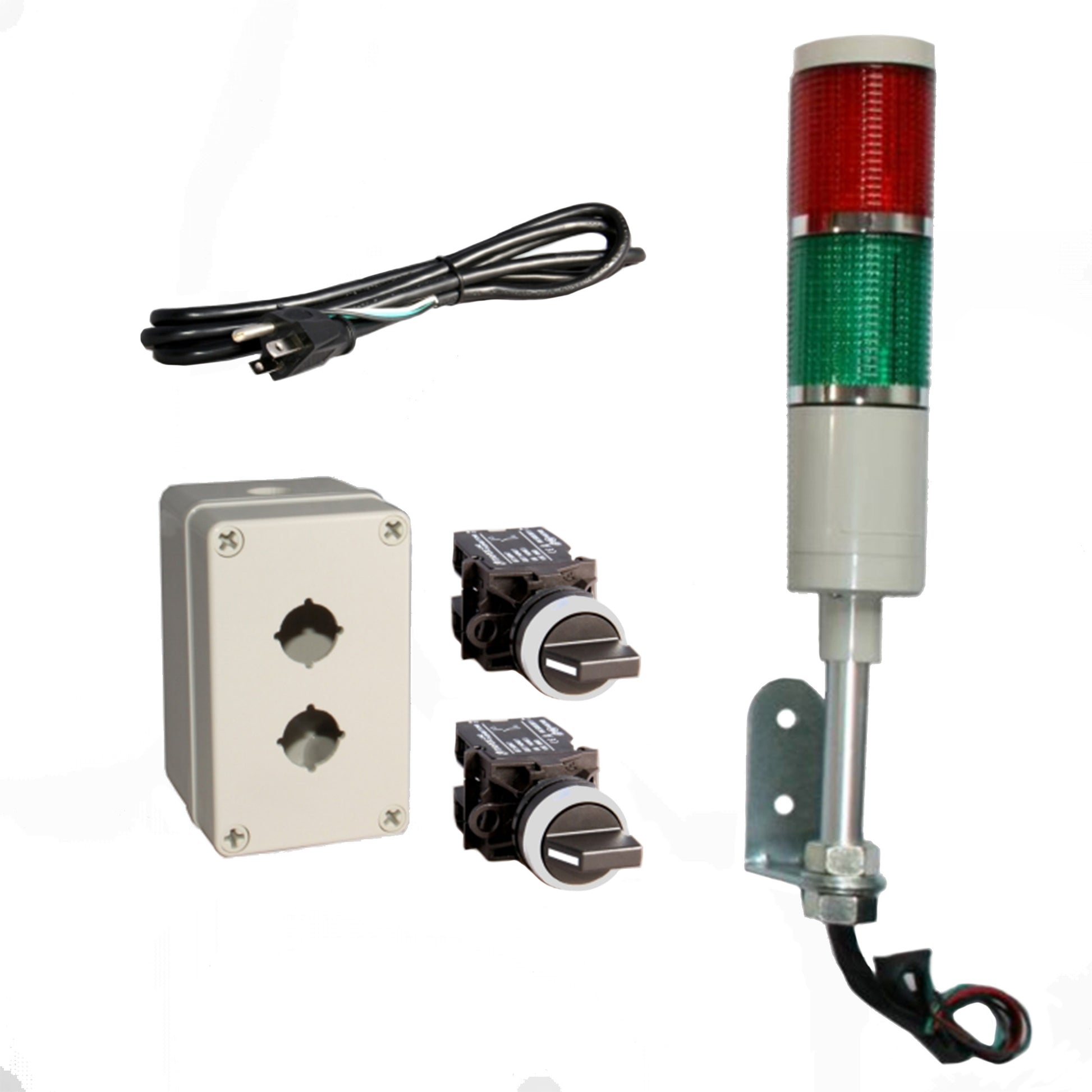

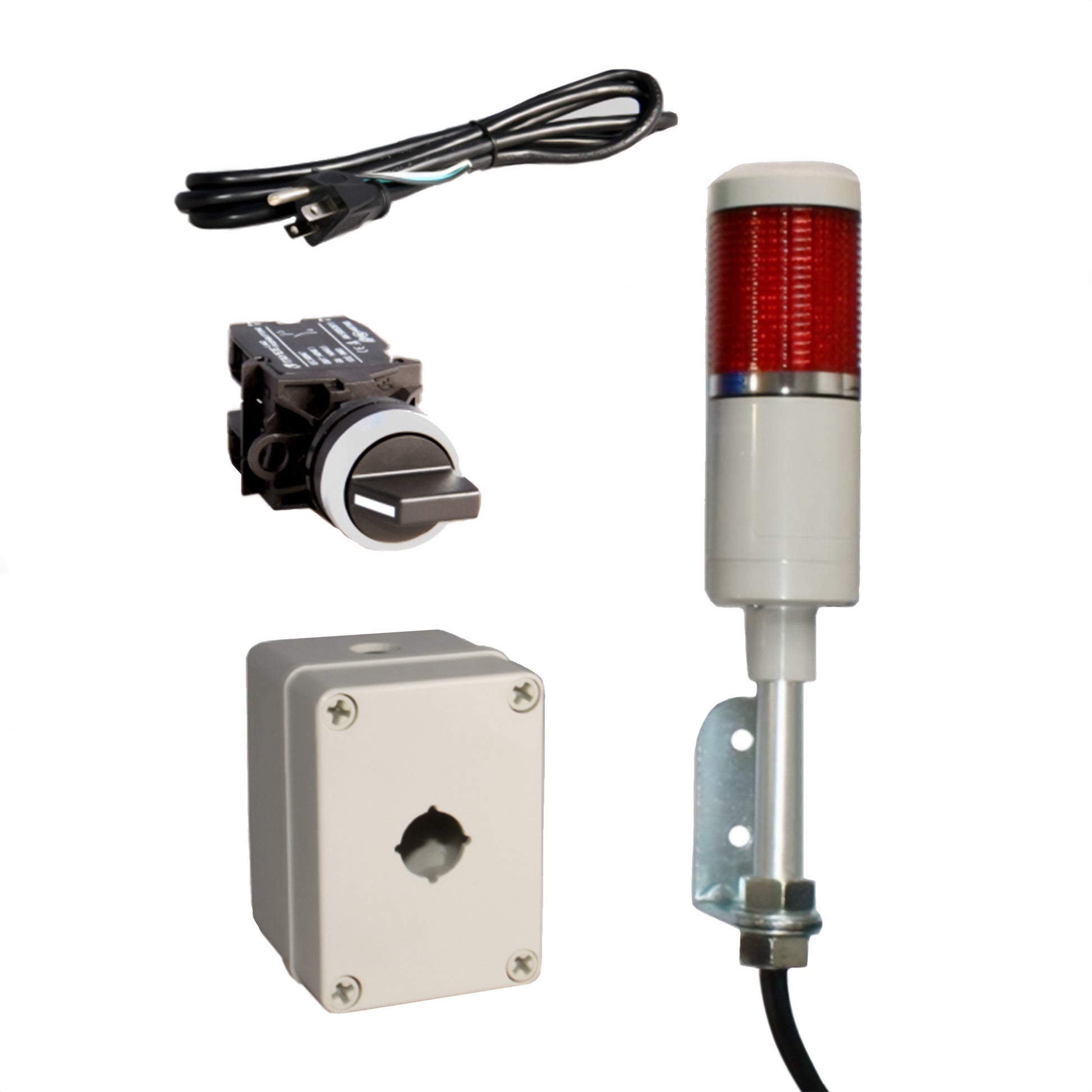

This kit includes the following:

1x stack light with 3.5" mounting pole (HE-2782-032) and angle wall mount bracket

1x HE-2556-305 1-5 section 22mm plastic ABS switch box enclosure with knockouts

1-5x SW-2837-430 Maintained 2 or 3 position selector switches

1x Cord grip and nut for running power cable

1x Structural enclosure stiffener plate for durability

1x WA-2632-006 120VAC 3-Prong Power Cable pre-stripped to 3 inches

1x 1/2" to 3/8" reducing washer for converting 22mm knockout to tower light pole diameter

1x Assembly kit which includes components such as fork terminals, butt splices, wire, colored vinyl tags, among other parts to help facilitate complete assembly

Tools such as a phillips head screwdriver, wire strippers, a socket/mandril/flat head screwdriver (for knockout), etc, are required to assemble. Technical skills may be necessary. Assembly instructions NOT included.

Note: Due to the various components required, lead times may vary.

                                              Equivalent Model Chart

 Signaworks Continuous                            LEDAndon Continuous
                  KITS-120-1                                               KT-5211-100
                  KITS-120-2                                               KT-5212-100
                  KITS-120-3                                               KT-5213-100
                  KITS-120-4                                               KT-5214-100
                  KITS-120-5                                               KT-5215-100

Signaworks Continuous & Flash             LEDAndon Continuous OR Flash
                  KITF-120-1                                                 KT-5211-101
                  KITF-120-2                                                 KT-5212-101
                  KITF-120-3                                                 KT-5213-101
                  KITF-120-4                                                 KT-5214-101
                  KITF-120-5                                                 KT-5215-101
  Signaworks Continuous & Flash             LEDAndon Continuous & Flash
                  KITF-120-1                                                 KT-5211-102
                  KITF-120-2                                                 KT-5212-102
                  KITF-120-3                                                 KT-5213-102
                  KITF-120-4                                                 KT-5214-102
                  KITF-120-5                                                 KT-5215-102
