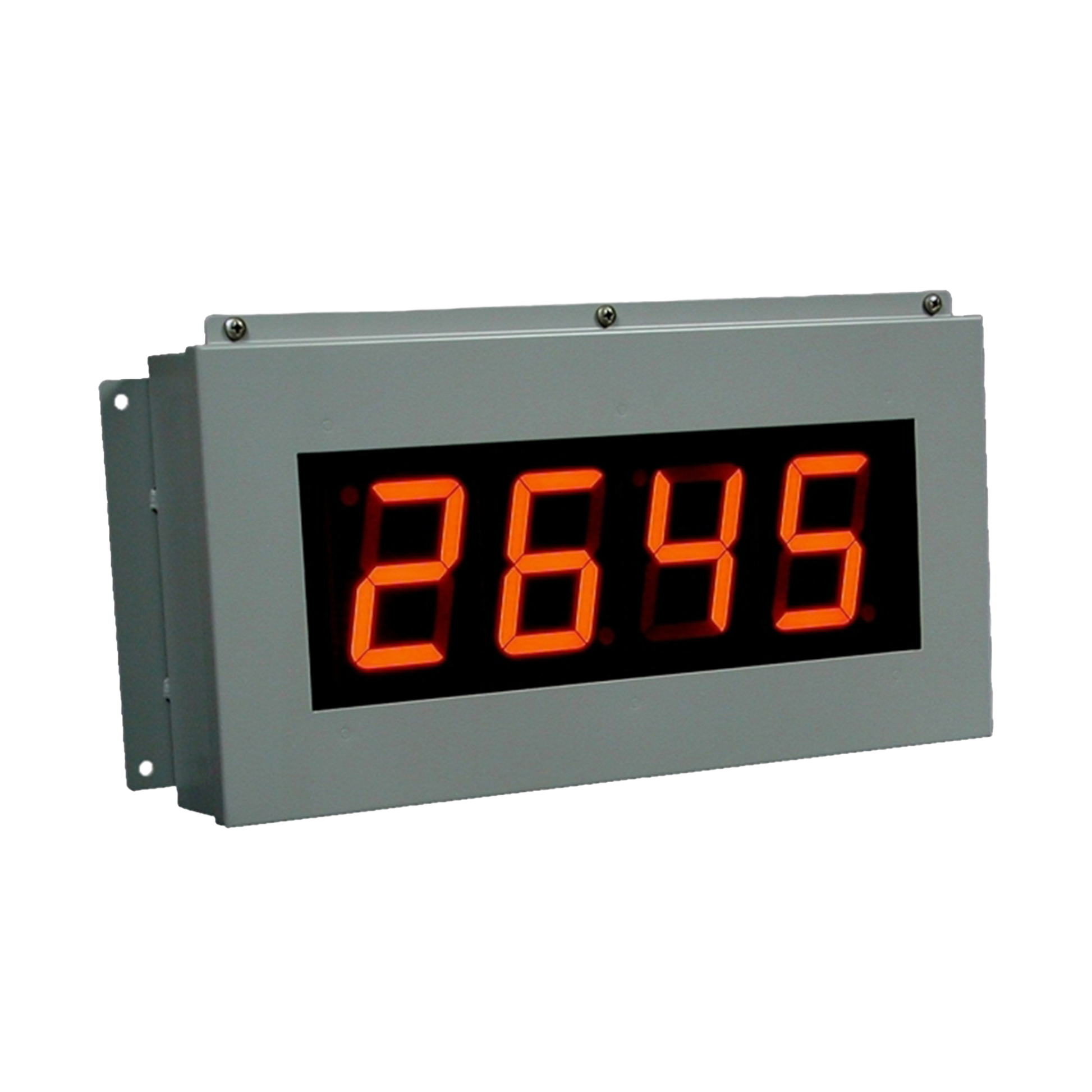

American Ledgible LED Timers and Counters from Signaworks can be used in any combination of custom assembly. These timers and counters are great tools for real-time data analysis and downtime monitoring.
Features
Counter + Timer
Selectable as a Production Counter or Production Timer
7 segment LED, 4 inch high, visible up to 200 feet
NEMA 12, gray, 16 Gauge steel enclosure with hinged door
120 VAC power at 1 amp
Zero or blank setting for any digit not used
Relay output when count/time reaches zero or preset
Variety of options and features are jumper selectable
1/4 inch thick acrylic sheet for display window
Screw terminal connections
Counter
Count up or count down
Relay output when count reaches zero or preset
120 VAC or 24 VDC count input
Optional Accessories (Call for Quote)
Manual count and reset box (KT-051)
Retro-reflective photo kit box with reset push button (KT-031)
Run/hold switch box with reset push button
Equivalent Model Numbers
All models operate as a timer or counter depending on the internal setting
AF-2640-314 and AF-2645-314 Count and Time Up
AF-2640-905 and AF-2645-905 Count and Time Up Hold on Zero
AF-2640-912 and AF-2645-912 Count and Time Down with Overage
AF-2640-907 and AF-2645-907 Count & Time Down Reset on Zero
