2 Inch LED Counter or Timer

Features

Counter + Timer

• 7 segment LED, 4 Digit, 2.3 inch high, visible up to 125 feet

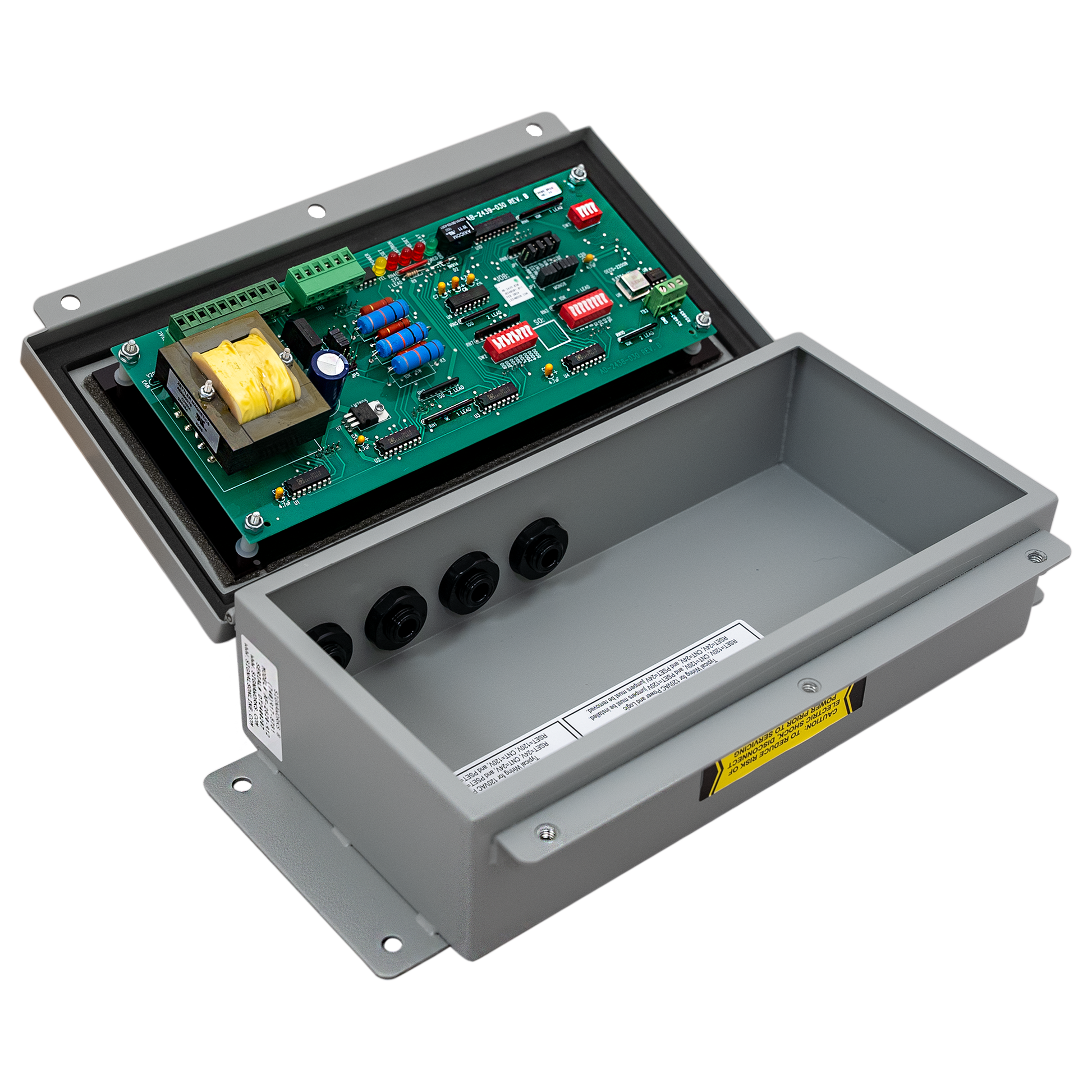

• NEMA 12, gray, 16 Gauge steel enclosure with hinged door

• 120 VAC power at 1 amp

• Zero or blank for any digit not used

• Relay output when count/time reaches zero or preset value

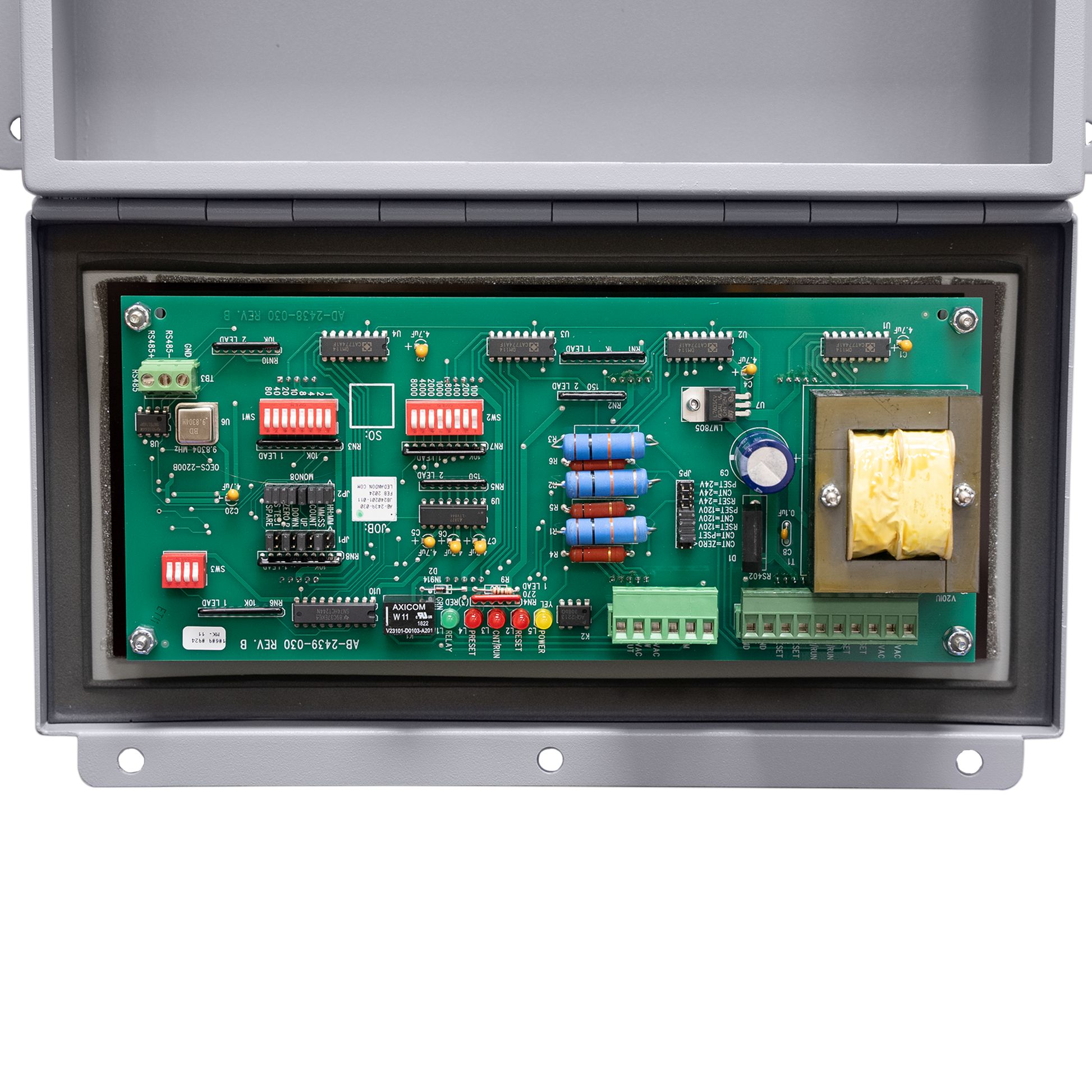

• Variety of options and features are jumper selectable

• 1/4 inch thick durable acrylic sheet display window

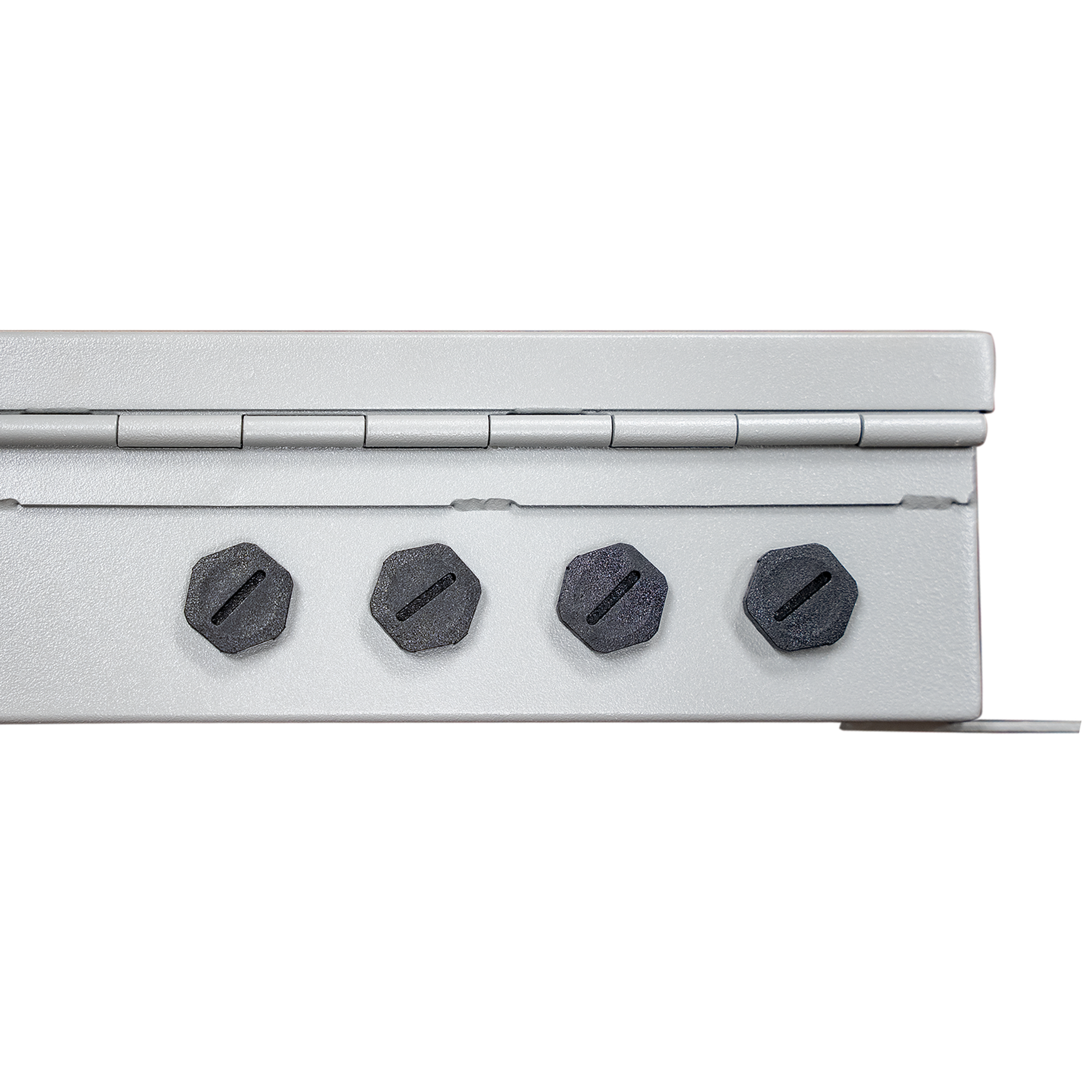

• Screw terminal connections for input

• Count up to 9999 or Time MM:SS or HH:MM

• LED Lifespan 100,000 Hours Typical

• Color Red LED Display

Counter & Timer Functions

• Count up or down, Time up or down - Switch Selectable

• Relay output when count reaches zero or preset

• 120 VAC or 24 VDC count input

About

“That which is measured improves. That which is measured and reported improves exponentially.” Professor Karl Pearson

The AF-2620/AF-2625 has both the Timer and Counter functions built into one unit. By changing jumper pin the device can change from timer to counter, from up to down count, it can adjust what happens at the end of a cycle and more. Presets can be set with dip switches to count or time up to or down from with a relay output at the end of the cycle. It is available as the counter/timer ready to wire  plug and play options with switch boxes and power cord already installed to plug in and operate the moment you open the box.

UP COUNTER:

Simple counter for batch, piece, box or scrap. Simply activate momentary input to increment count up by one. Momentary input to RESET count to zero. Can set a preset value with dip switches to provide output when the count reaches the preset value.

UP TIMER:

Simple timer supports MM:SS or HH:MM format. Simply apply maintained output to the CNT/RUN input for the duration of time up. Remove input to pause or hold timer value. Momentary input to RESET the time to zero.

DOWN COUNTER:

Simple counter for batch, piece, box or scrap. Set Preset value with dip switches. Provide momentary input to RESET count to Preset value. Simply activate momentary input the CNT/RUN input to increment count down by one. Relay output triggers when count is at zero.

DOWN TIMER:

Simple timer supports MM:SS or HH:MM format. Set Preset value with dip switches. Simply apply maintained output to the CNT/RUN input for the duration of time down. Remove to pause or hold timer value. Momentary input to RESET input to Preset value. Choose the correct model to have Timer show Overage, Hold on Zero or Rest on Zero.

LED PRODUCTION COUNTERS are commonly used to show factory personnel real-time production counts. This helps operators maintain company goals to produce units and pace the production process.

Applications

LED PRODUCTION COUNTERS OR LED COUNTERS are used to display overall throughput counting or output counts. These increments by one every pulse received to the count input.

LED BATCH COUNTS are used to display batch production output numbers. These are typically used for count down from fixed preset batch goals or count up to desired batch count to aid operators to prevent overrun.

LED CYCLE COUNTS or LED STROKE COUNTS can be simple up counters to show operator how many cycles or parts are completed.

LED REJECT COUNTERS are used to show operator bad counts to track for overall waste monitoring and recording.

Optional Accessories (Call for Quote)

• Manual Counter count and Reset box (KT-2764-030, PPT-030)

• Manual Timer Run/Hold and Reset box

• Retro-reflective Photo kit Count box with Reset push button (KT-2764-042, PPT-042)

• Retro-reflective Photo kit Timer Run/Hold box with Reset push button (KT-2764-042, PPT-042)

• Run/hold switch box with reset push button

• Manual Timer Run/Hold, Reset Box (KT-2764-027) KT-027

• Manual Count, Reset Box for Counter or PPT (Formerly KT-2764-030) KT-051

• Diffuse Photo, Reset Switch Box for Counter or PPT KT-031

• Retro-reflective Photo, Reset Switch Box for Counter or PPT (KT-2764-026) KT-026

Model Types

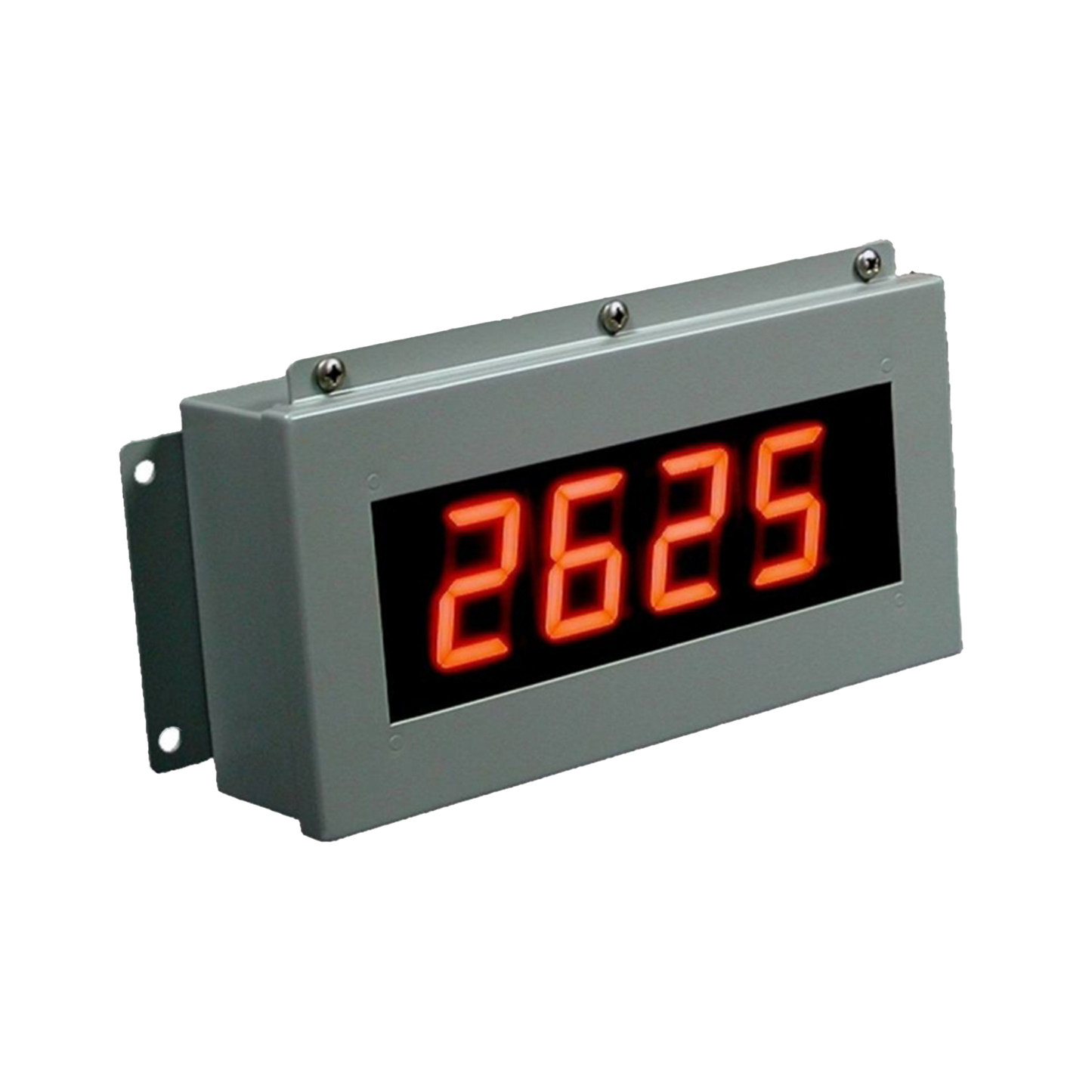

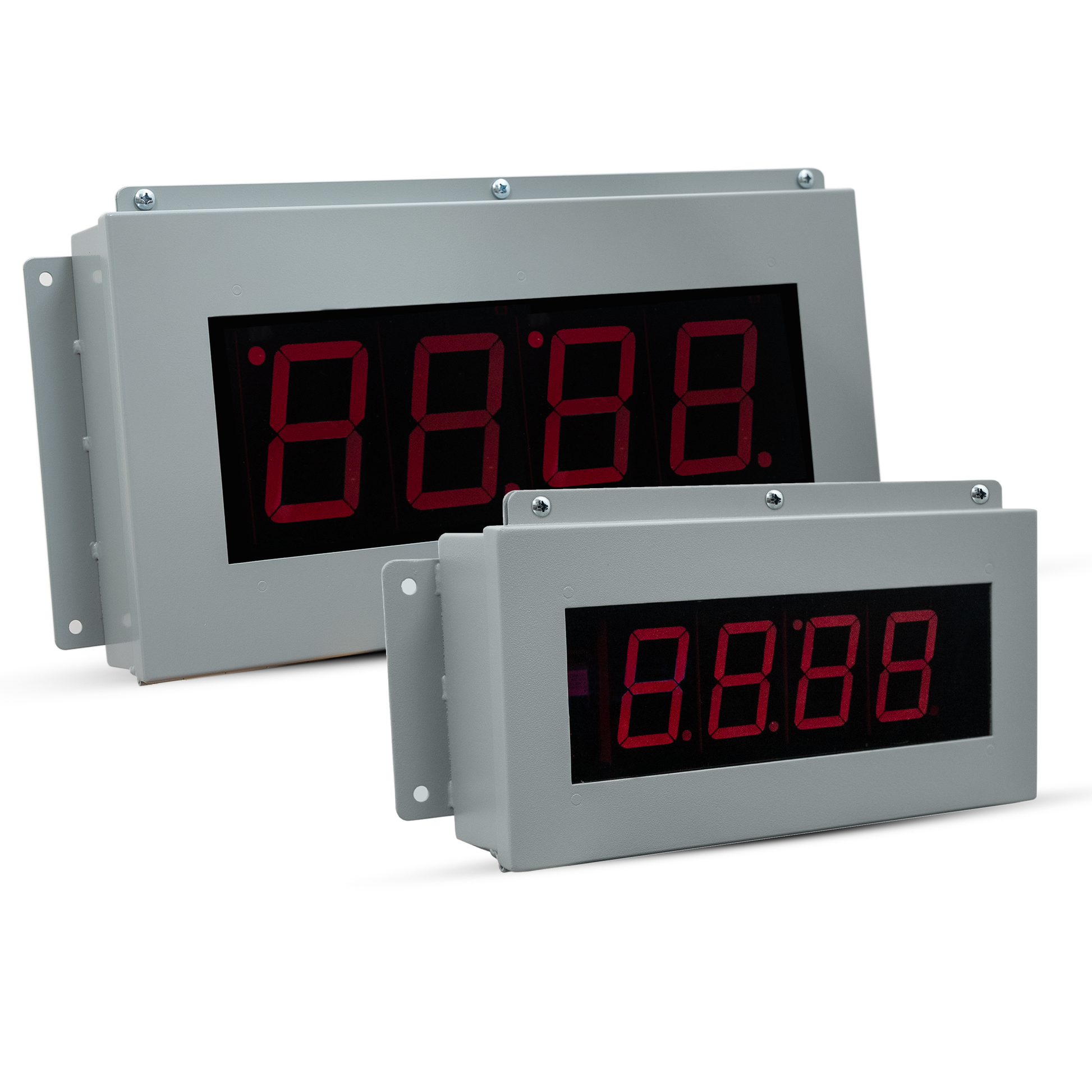

AF2625-314 - 2 inch, 4 digit LED Up/Down Counter

AF2620-324 - 2 inch, 4 digit LED Up/Down Timer (MM:SS or HH:MM)

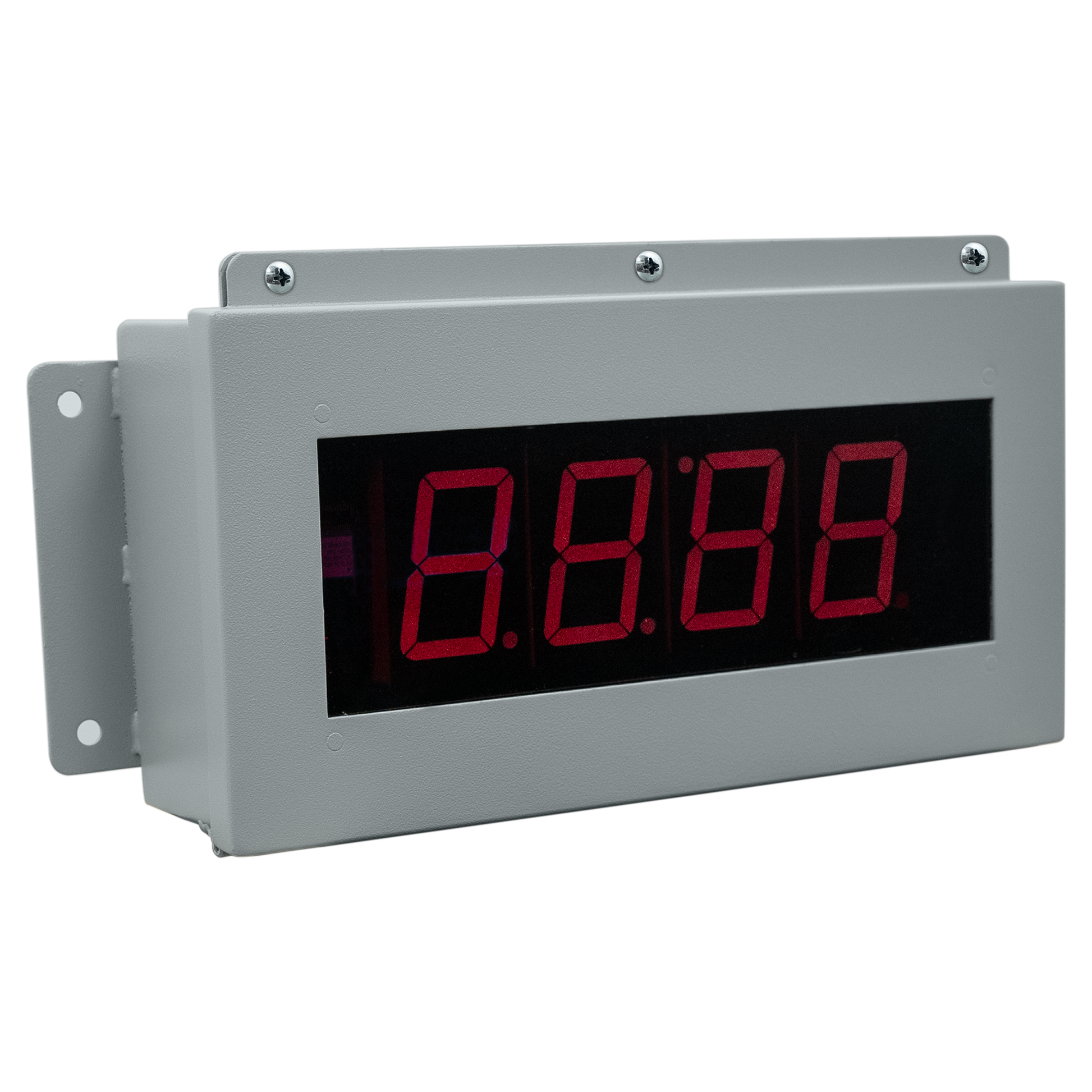

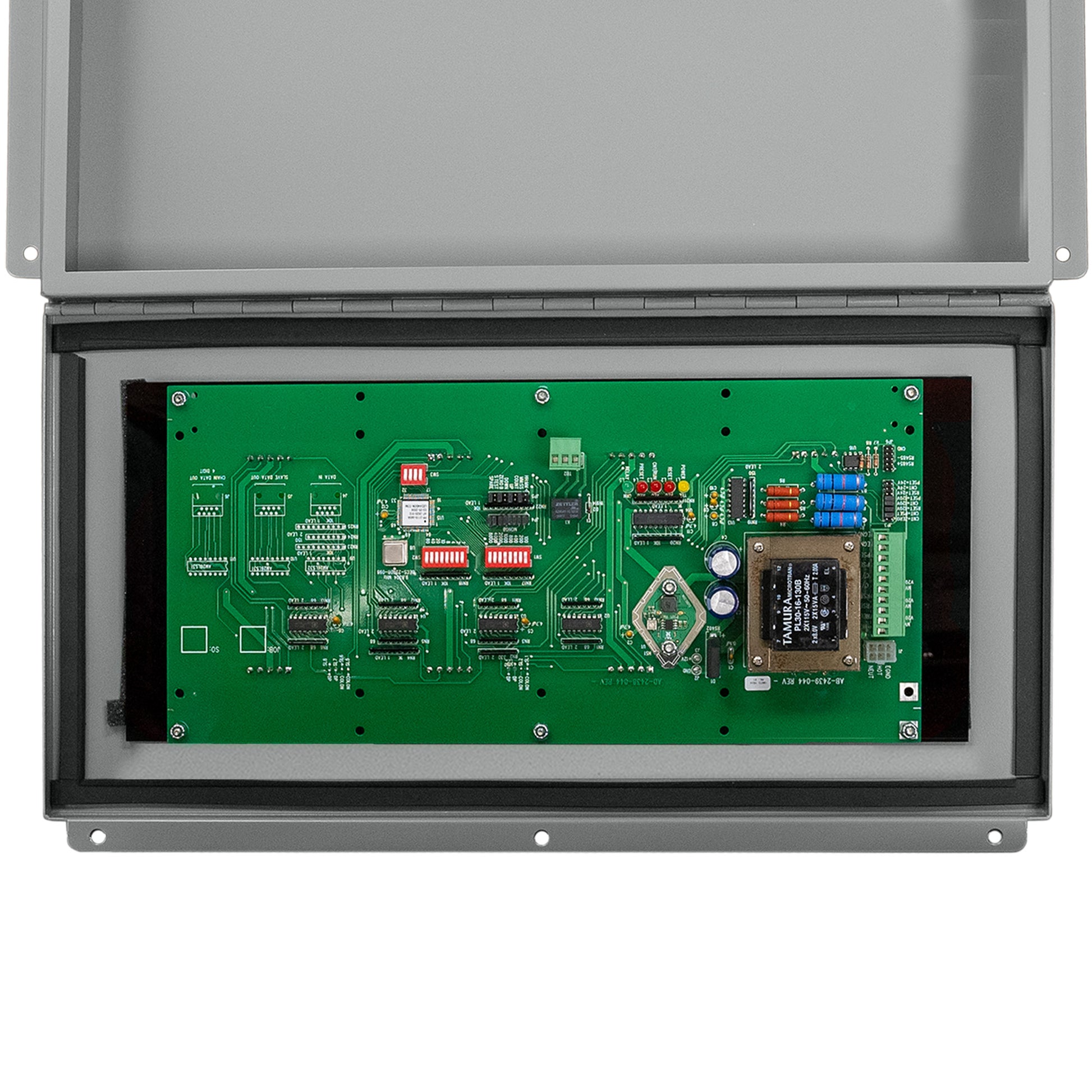

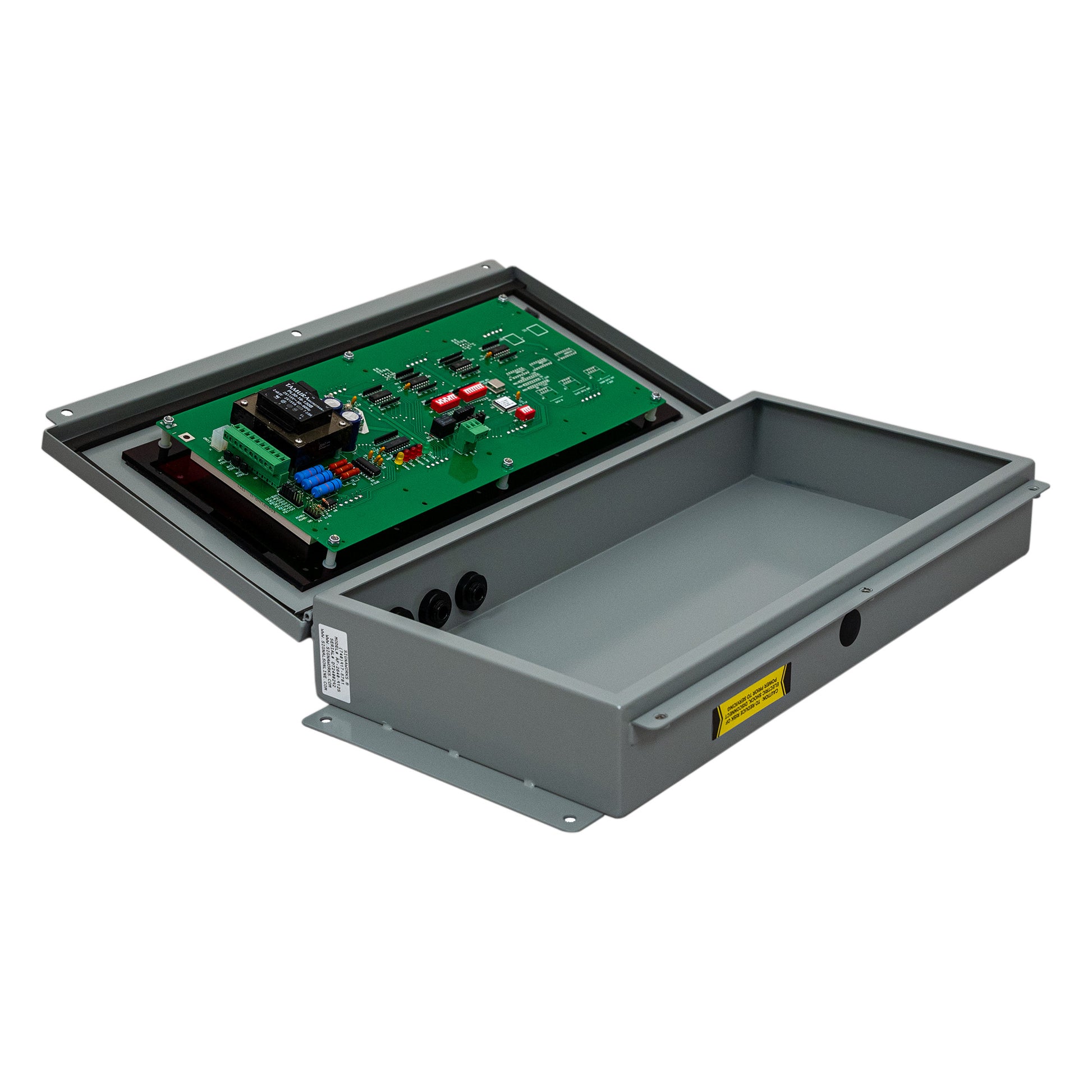

AF2645-314 - 4 inch, 4 digit LED Up/Down Counter

AF2640-314 - 4 inch, 4 digit LED Up/Down Timer (MM:SS or HH:MM)

Manual PDF

Data Sheet PDF

Mechanical Drawing

Assembly Drawing Page 1

Assembly Drawing Page 2
